Large-format batch output
More parts in each production cycle
The broad build platform is designed for dental laboratories that need to consolidate model and component batches without giving up fine detail.
High-throughput dental production

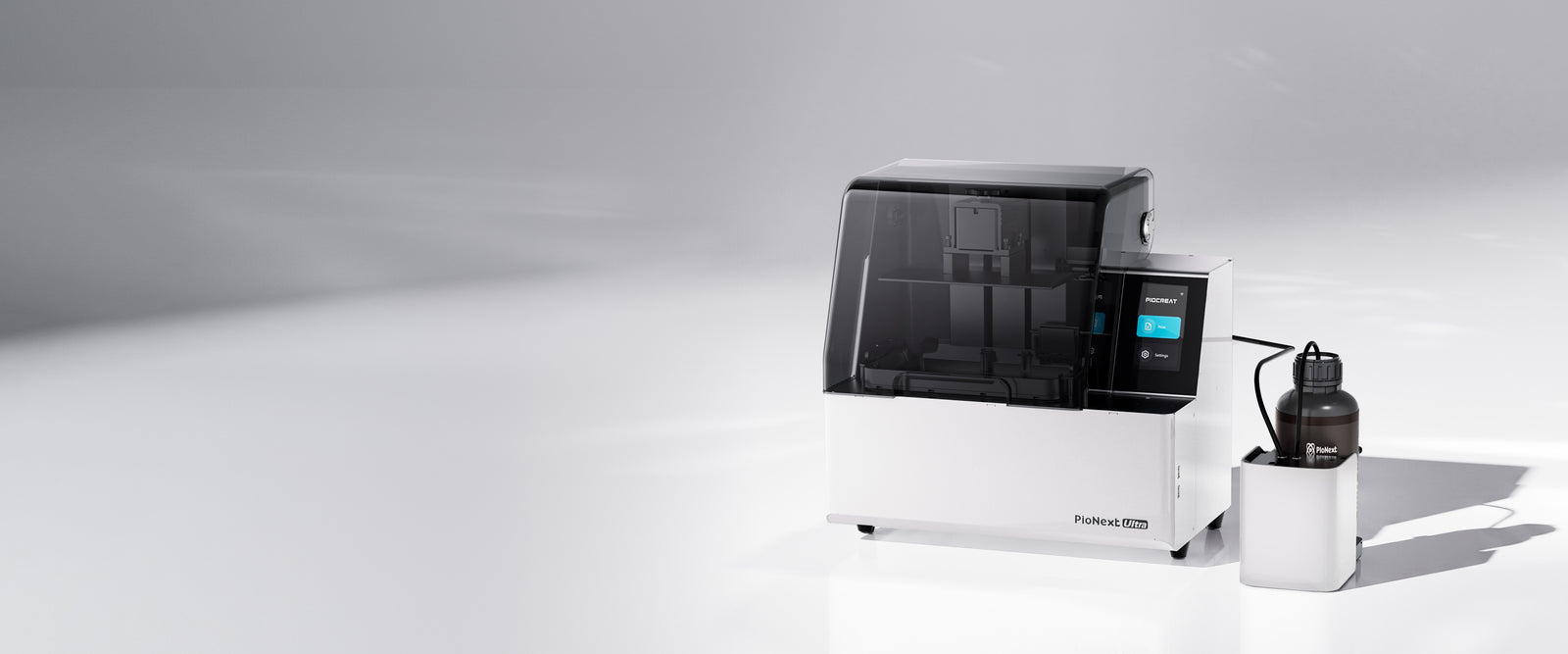

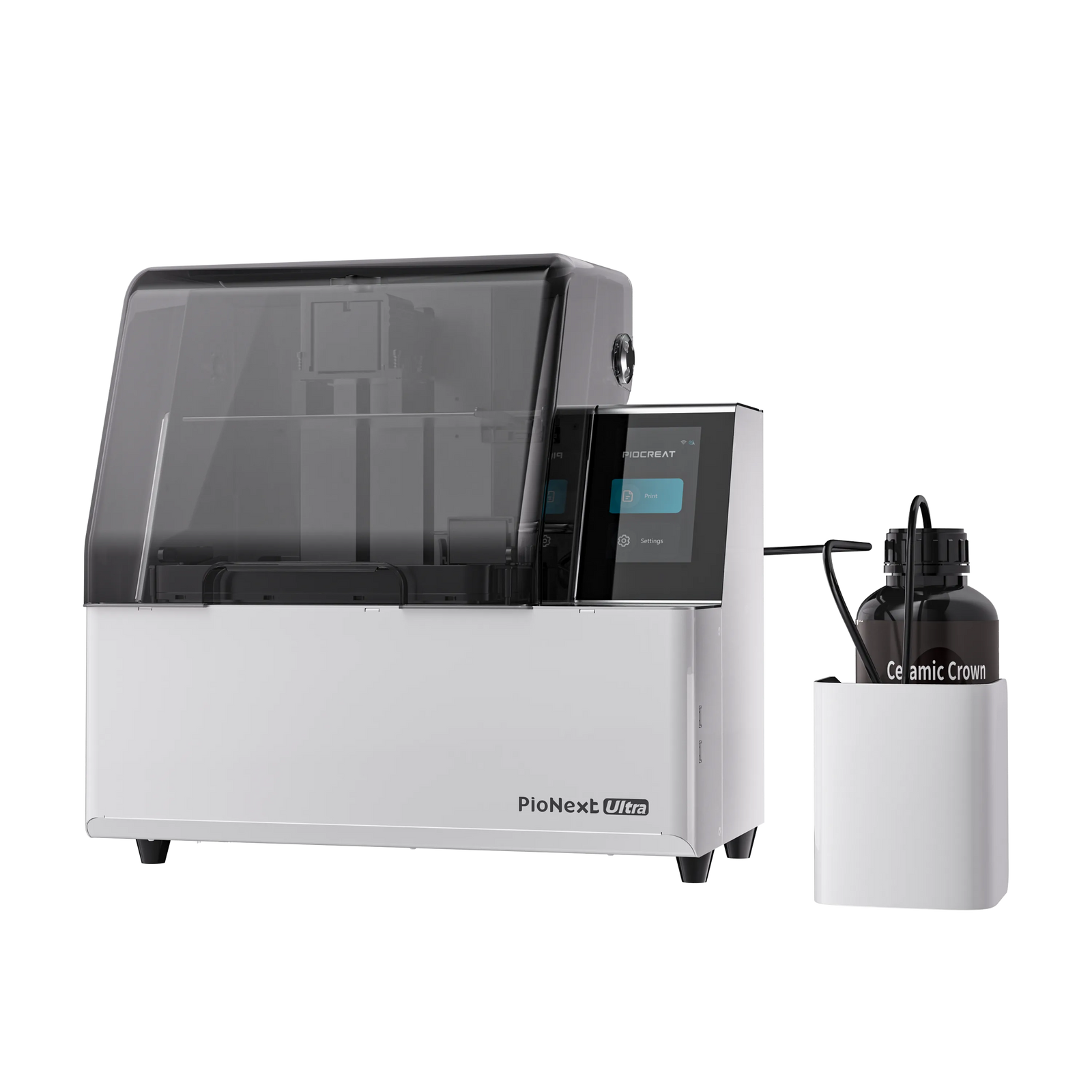

PioNext Ultra
16K dental production platform for larger, repeatable batches
PioNext Ultra is a high-throughput professional dental resin 3D printer for laboratories that need larger batches and repeatable fine-detail output. Its 16K imaging system, 14 × 19 μm pixel size and 211.68 × 118.37 × 100 mm build volume provide substantially more production capacity than a compact chairside platform.
A heated chamber up to 35°C supports material consistency, while dual linear guide rails and a ball-screw Z-axis provide stable motion for densely nested jobs. Factory pre-leveling, a quick-release vat, USB and Wi-Fi transfer, and the optional automatic feed unit are designed around regular production use.
PioNext Ultra requires external washing and UV post-curing. ADDITORYX can configure a complete production cell with compatible PioCreat resins, CD-X3 cleaning, UV02 curing and application guidance based on your batch size and turnaround target.
- 16KHigh-resolution LCD
- 211.68 × 118.37 × 100 mmProduction build volume
- 14 × 19 μmPixel size
- Up to 35°CHeated chamber
Request an Ultra production package with post-processing equipment, resins and application support.
Why PioNext Ultra
Scale dental output without compromising process control
PioNext Ultra combines a larger platform, 16K imaging, controlled heating and production-oriented mechanics for laboratories moving beyond compact-batch capacity.

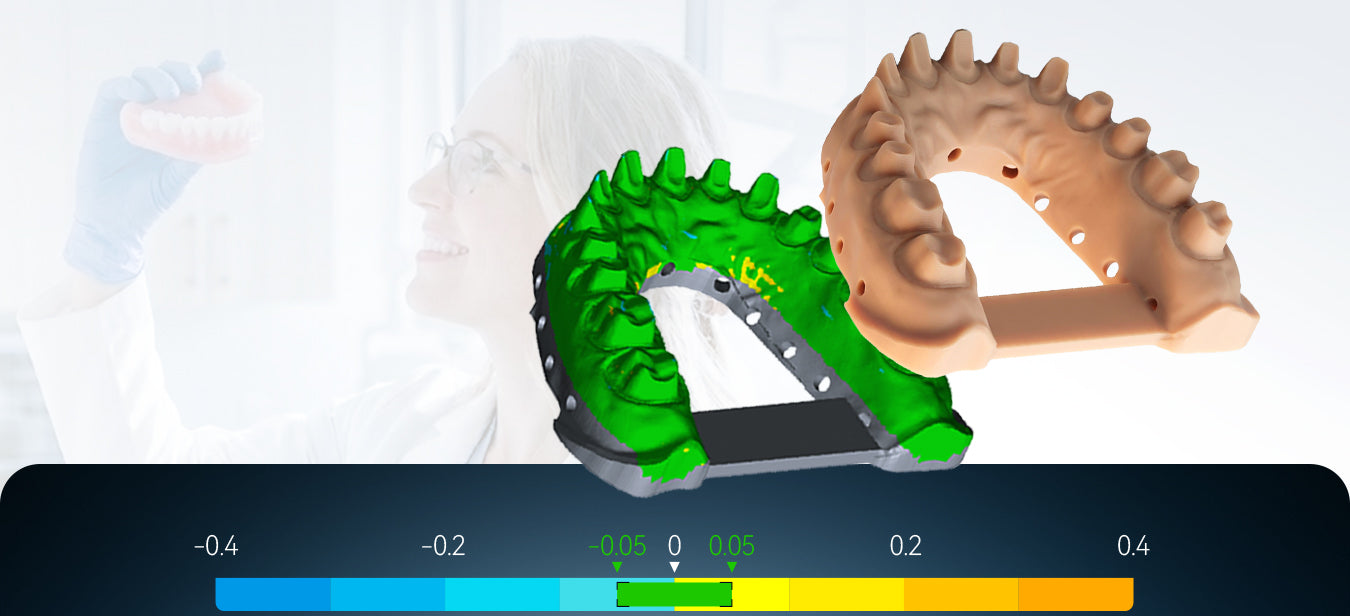

16K imaging
Detail across the platform
High-resolution imaging and a controlled light system support repeatable geometry across a larger working area.

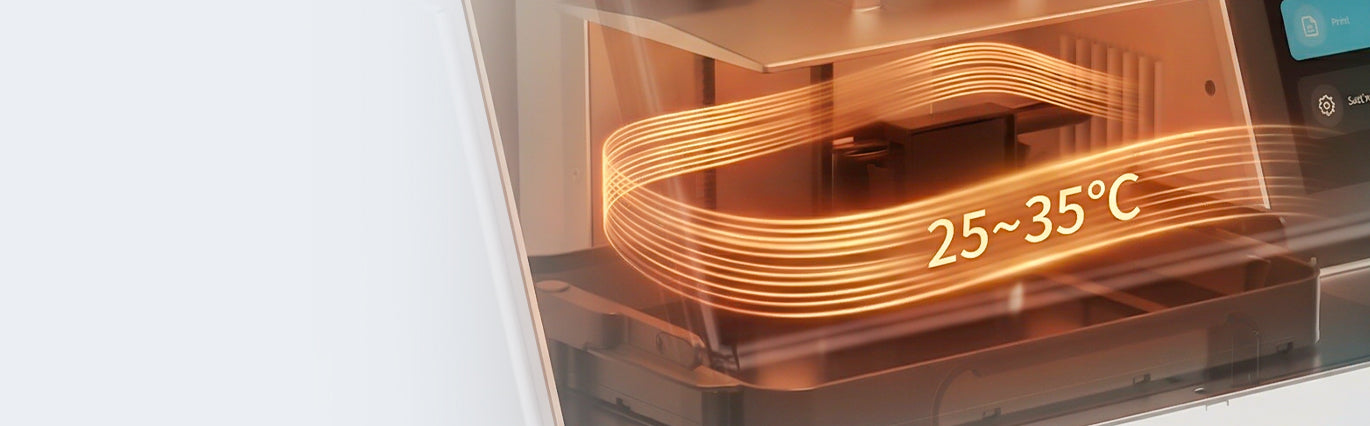

Up to 35°C
A thermally stable print environment
Chamber heating helps maintain material consistency for temperature-sensitive workflows when used within the resin's validated conditions.

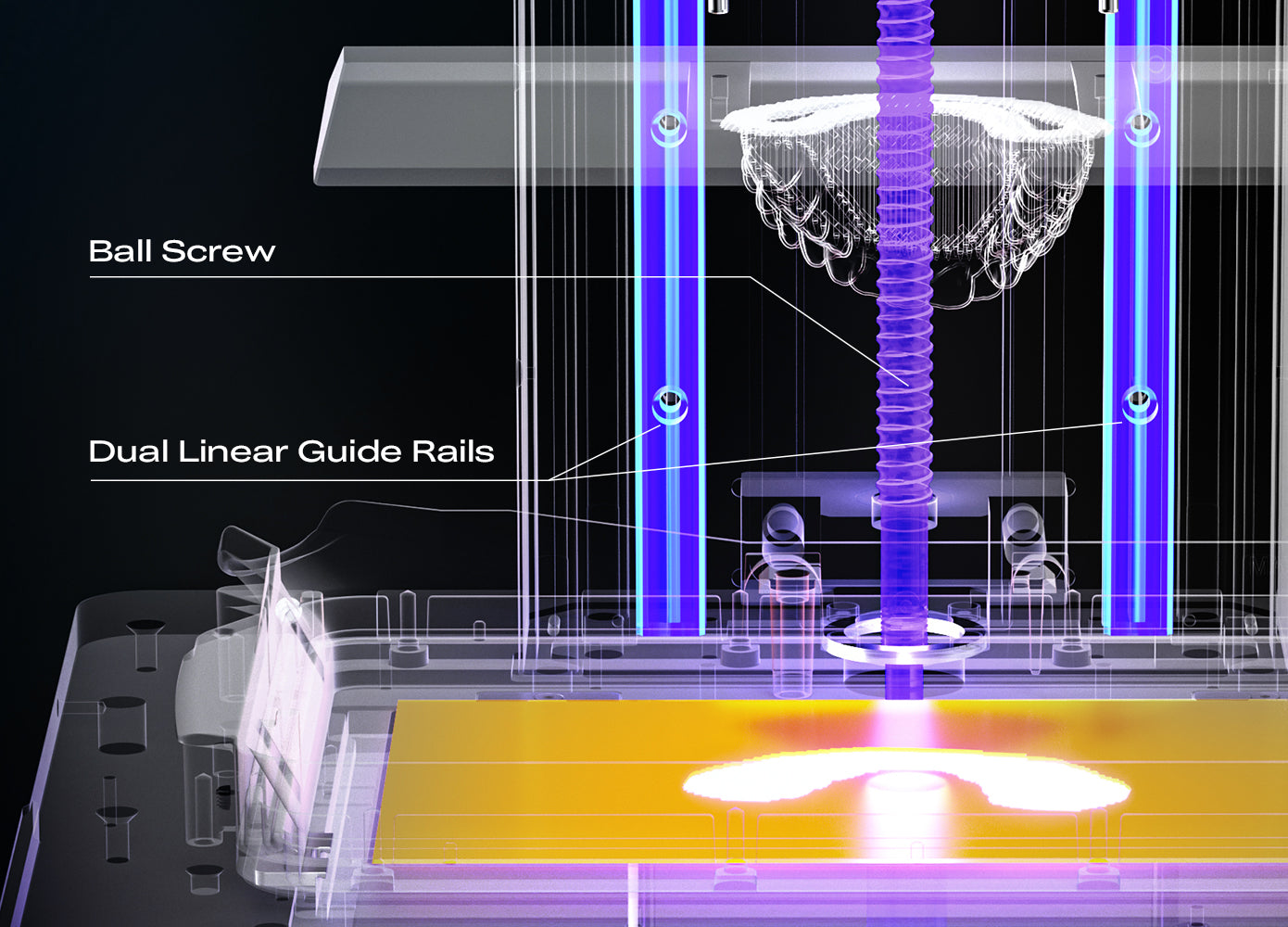

Dual rails + ball screw
Stable Z-axis motion
A rigid guided motion system supports consistent layer positioning during larger, longer or densely nested jobs.

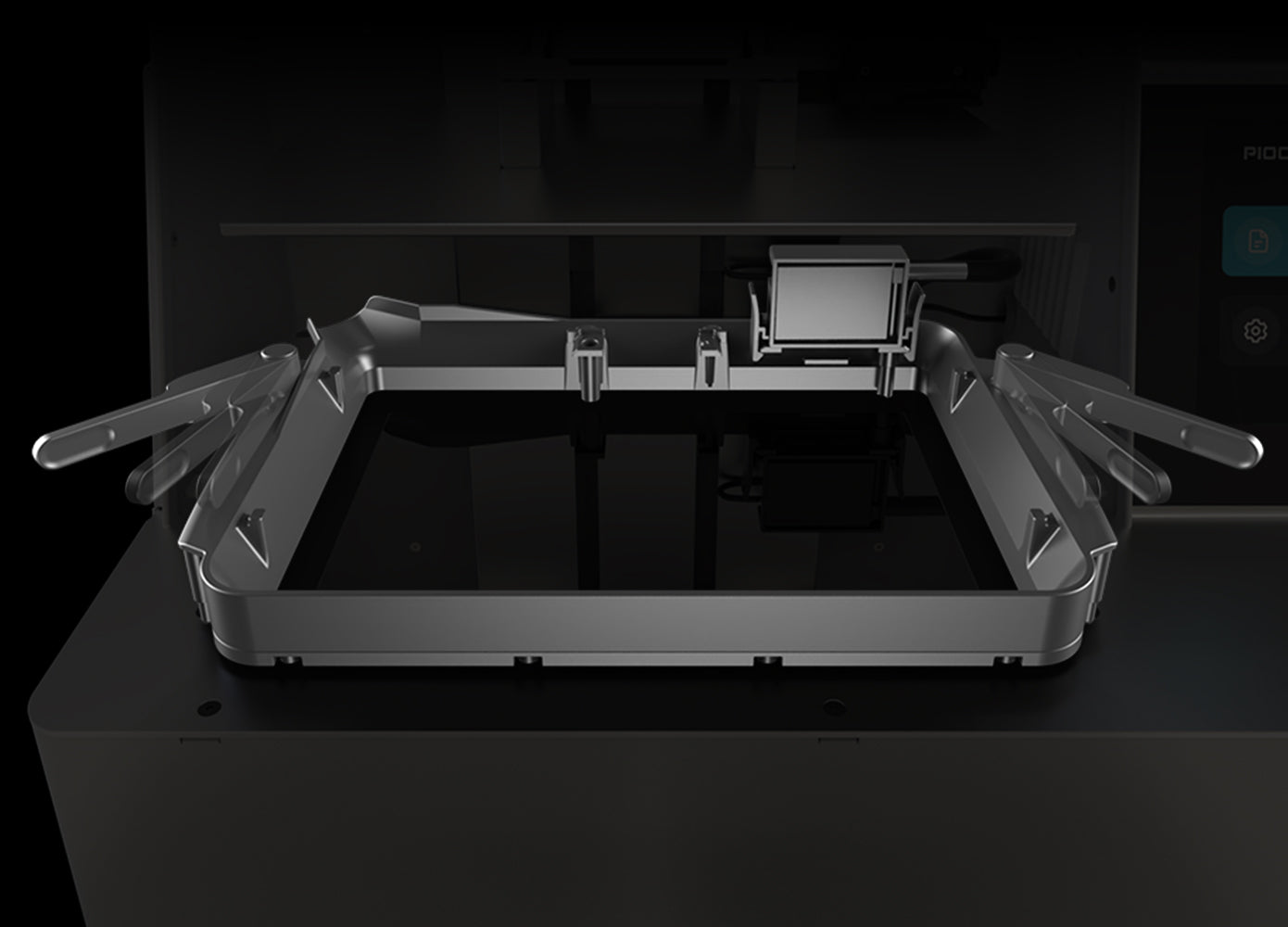

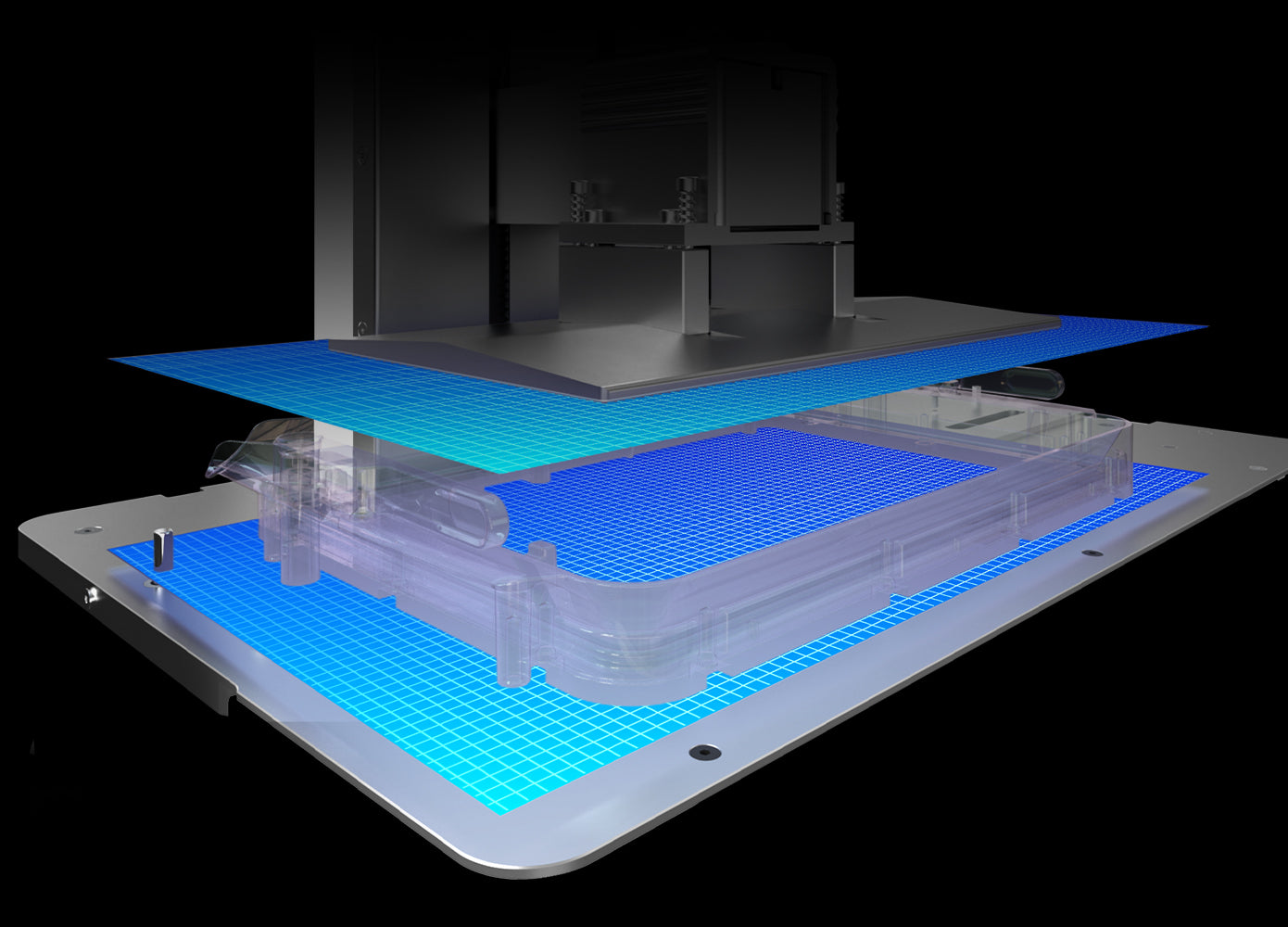

Factory prepared
Faster production setup
Factory pre-leveling and a quick-release vat reduce routine setup friction and support organized material changeovers.

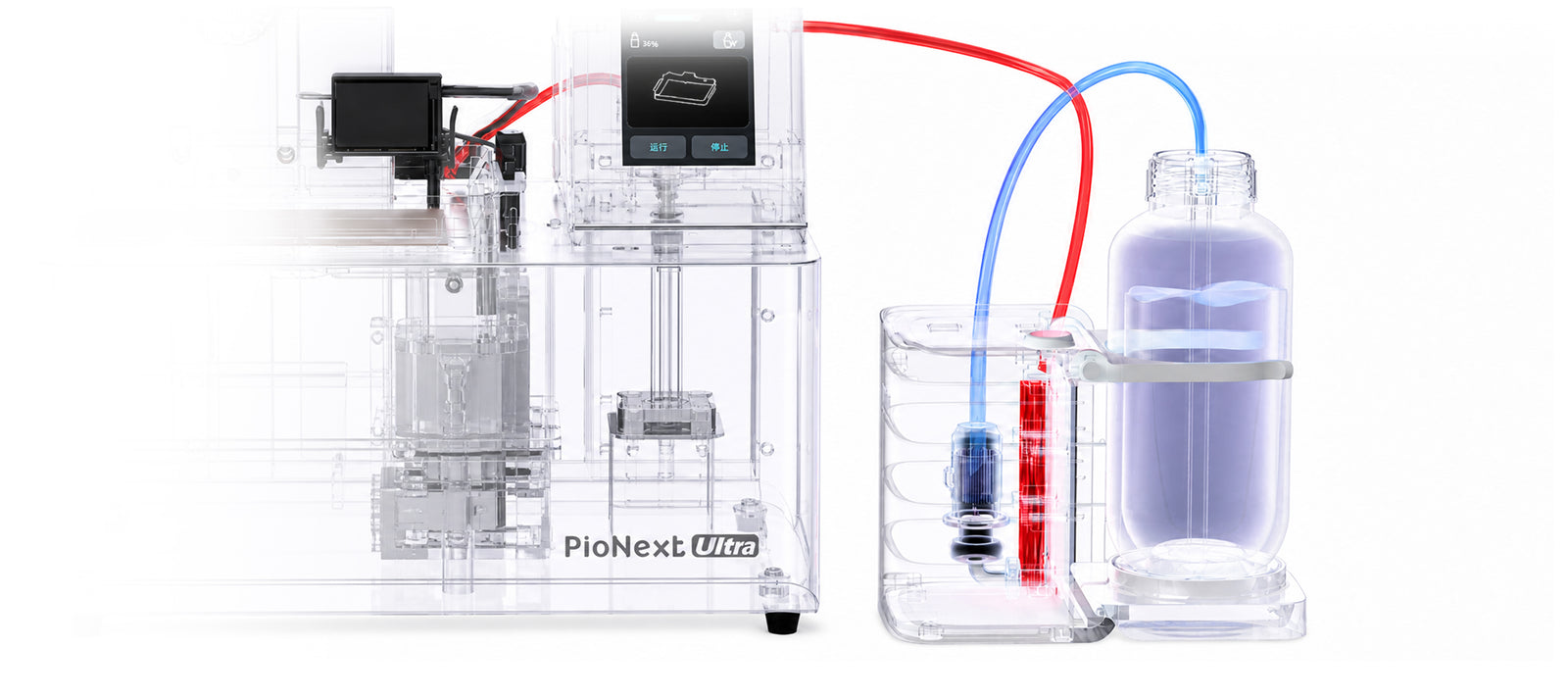

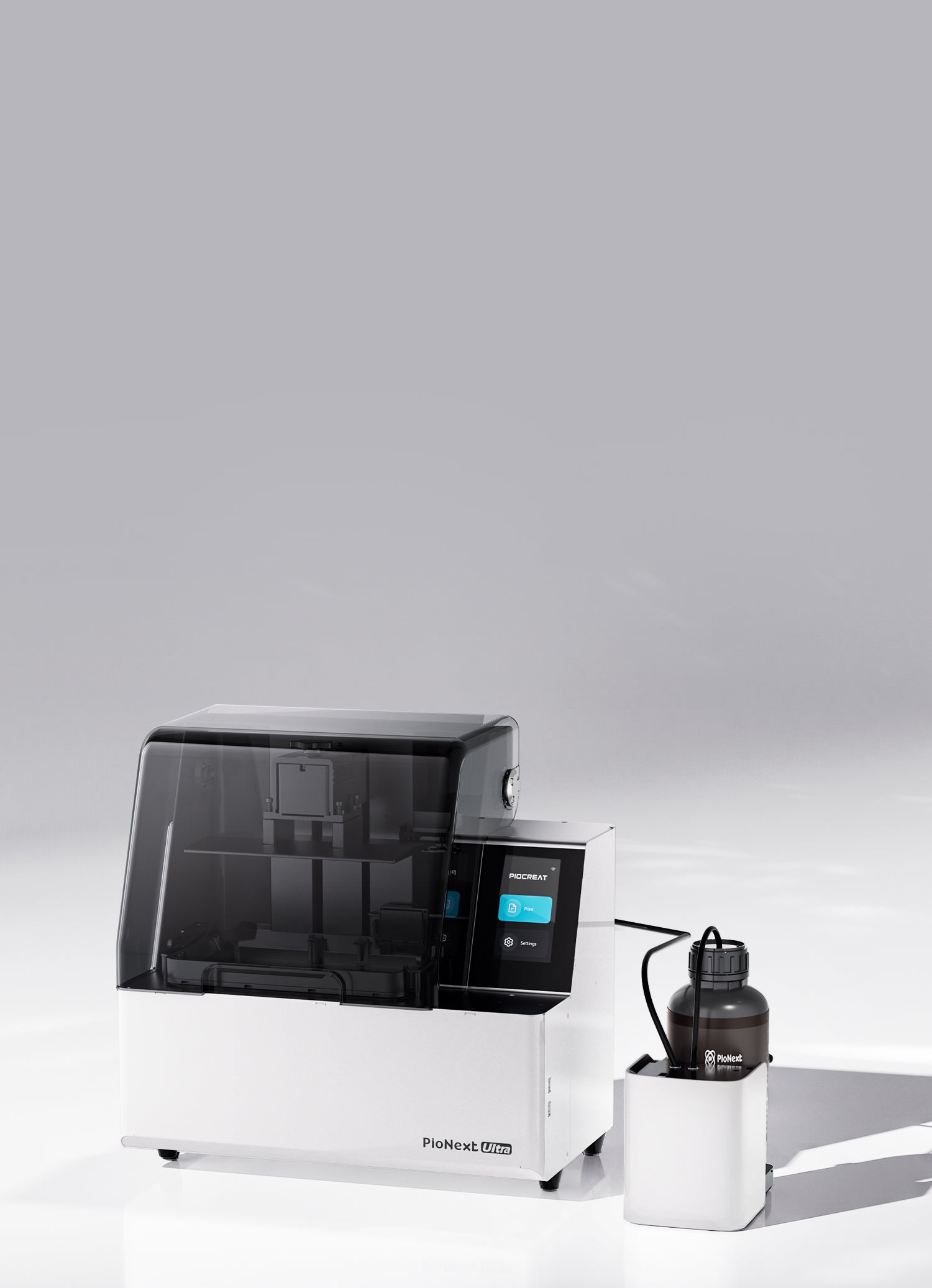

Optional AFU
Extend unattended production
The optional automatic feed unit helps maintain resin supply for demanding batches. Suitability depends on the material and operating procedure.
Applications
Capacity for growing dental laboratories
Ultra is the production-oriented choice when daily batch size, repeatability and material control matter more than the smallest footprint.

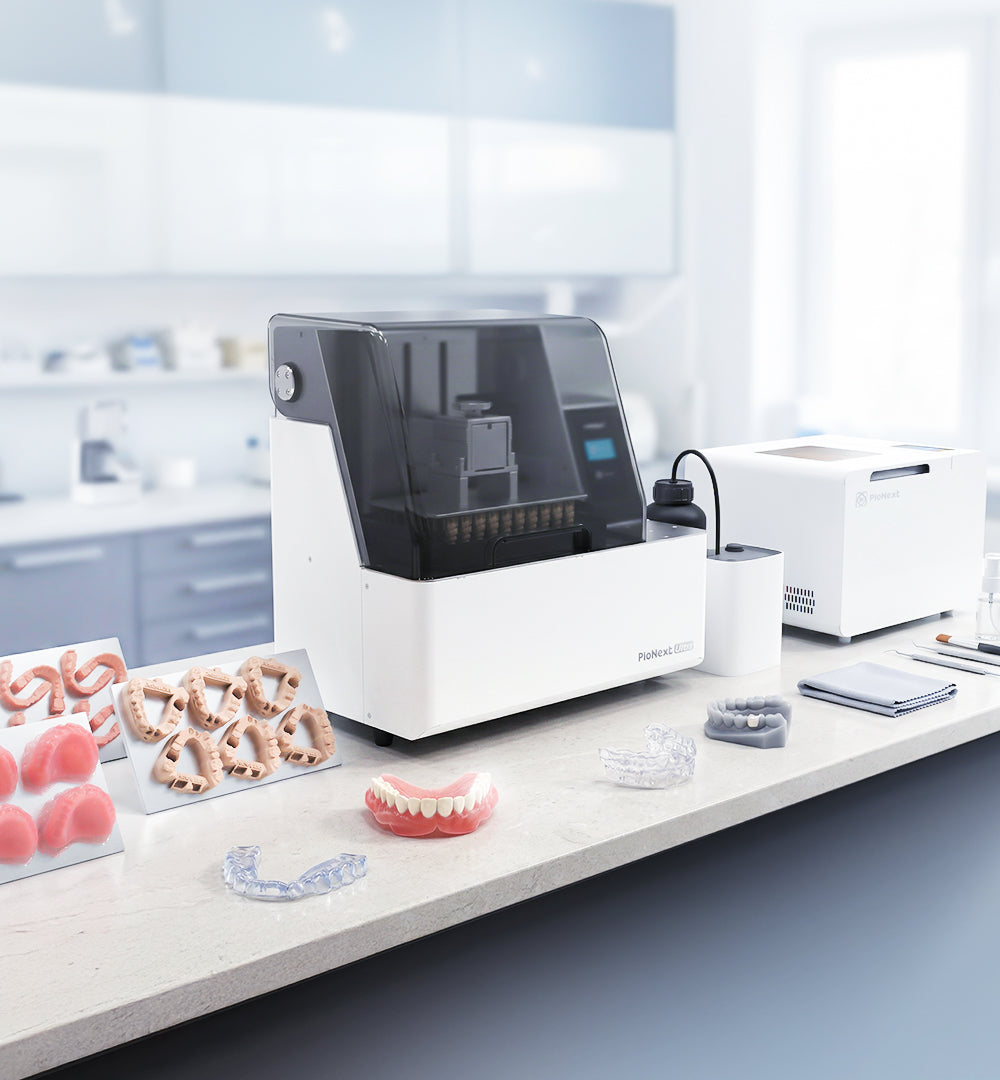

Batch production
Aligner and orthodontic models
Nest larger quantities of dental models to improve throughput across recurring production schedules.
Fine detail
Restorative laboratory workflows
Support detailed working models and validated restorative applications with controlled resin and post-processing parameters.
Flexible capacity
Mixed dental production
Use the larger platform to combine compatible parts or dedicate batches by material, application and validated workflow.
Production workflow
Build repeatability around every batch
Ultra is part of a controlled system. Consistent files, resin temperature, washing and curing are essential to production performance.
Prepare and nest
Prepare the file in PioCreat BOX or CHITUBOX Dental and select the validated profile for the chosen resin.
Control the material
Confirm resin condition, vat setup and the appropriate chamber temperature before starting the batch.
Run the production batch
Transfer jobs by USB or Wi-Fi and use the optional feed unit only where it is compatible with the material.
Wash, cure and inspect
Use external washing and UV curing equipment with the resin-specific parameters, then inspect every finished batch.
Technical data
PioNext Ultra specifications
Review platform capacity, installation space and electrical requirements before configuring your production system.
- Printing technology
- LCD resin 3D printing
- Build volume
- 211.68 × 118.37 × 100 mm
- Resolution
- 16K
- Pixel size
- 14 × 19 μm
- Wavelength
- 385 nm, 405 nm
- Maximum print speed
- Up to 60 mm/h at 0.1 mm
- Layer thickness
- 0.01–0.1 mm
- Machine dimensions
- 468 × 286 × 470 mm
- Rated power
- 660 W
Frequently asked questions
Planning a PioNext Ultra installation
We can help evaluate throughput, materials and post-processing before quotation.
When should I choose PioNext Ultra instead of Mini?
Choose Ultra when larger batch capacity, a broader build platform and external production post-processing are more important than Mini's compact all-in-one format.
Does PioNext Ultra include curing?
No. Ultra requires separate washing and UV post-curing equipment selected according to the resin workflow.
What does the heated chamber do?
The chamber can maintain temperatures up to 35°C to support material consistency. Always follow the resin manufacturer's validated operating range.
Is automatic resin feeding standard?
The automatic feed unit is optional. Confirm compatibility with the resin and operating process before use.
Can ADDITORYX help size production capacity?
Yes. Share part dimensions, daily quantities, materials and turnaround targets, and we can recommend machine count and post-processing capacity.
Scale with confidence
Plan your PioNext Ultra production system
Tell us your applications, batch sizes and target turnaround. We will prepare a printer, resin and post-processing proposal.
