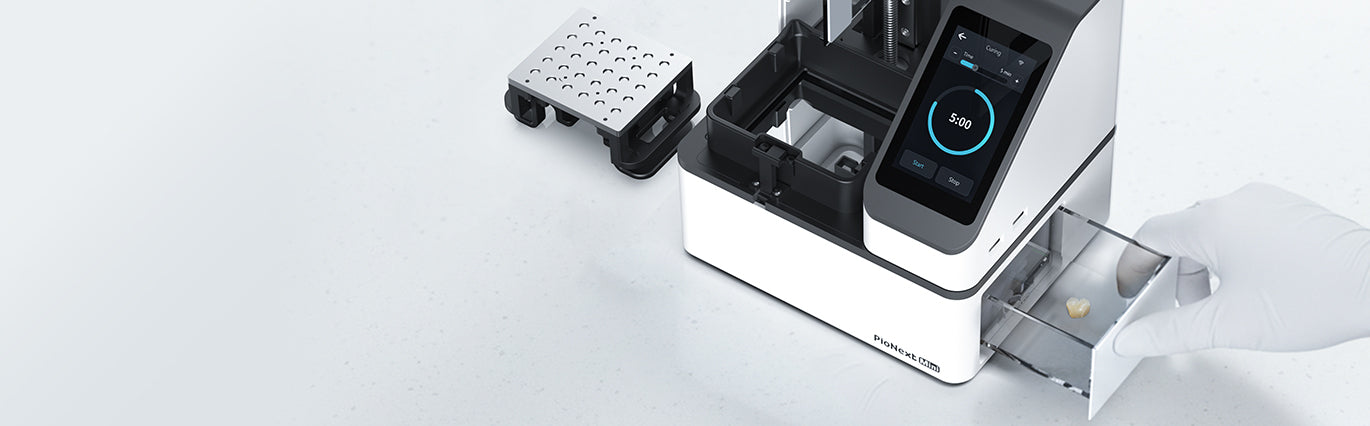

Print + cure
An integrated compact workflow
Printing and post-curing are combined in one compact platform, reducing equipment footprint while keeping the production sequence easy to manage.
Compact chairside dental production

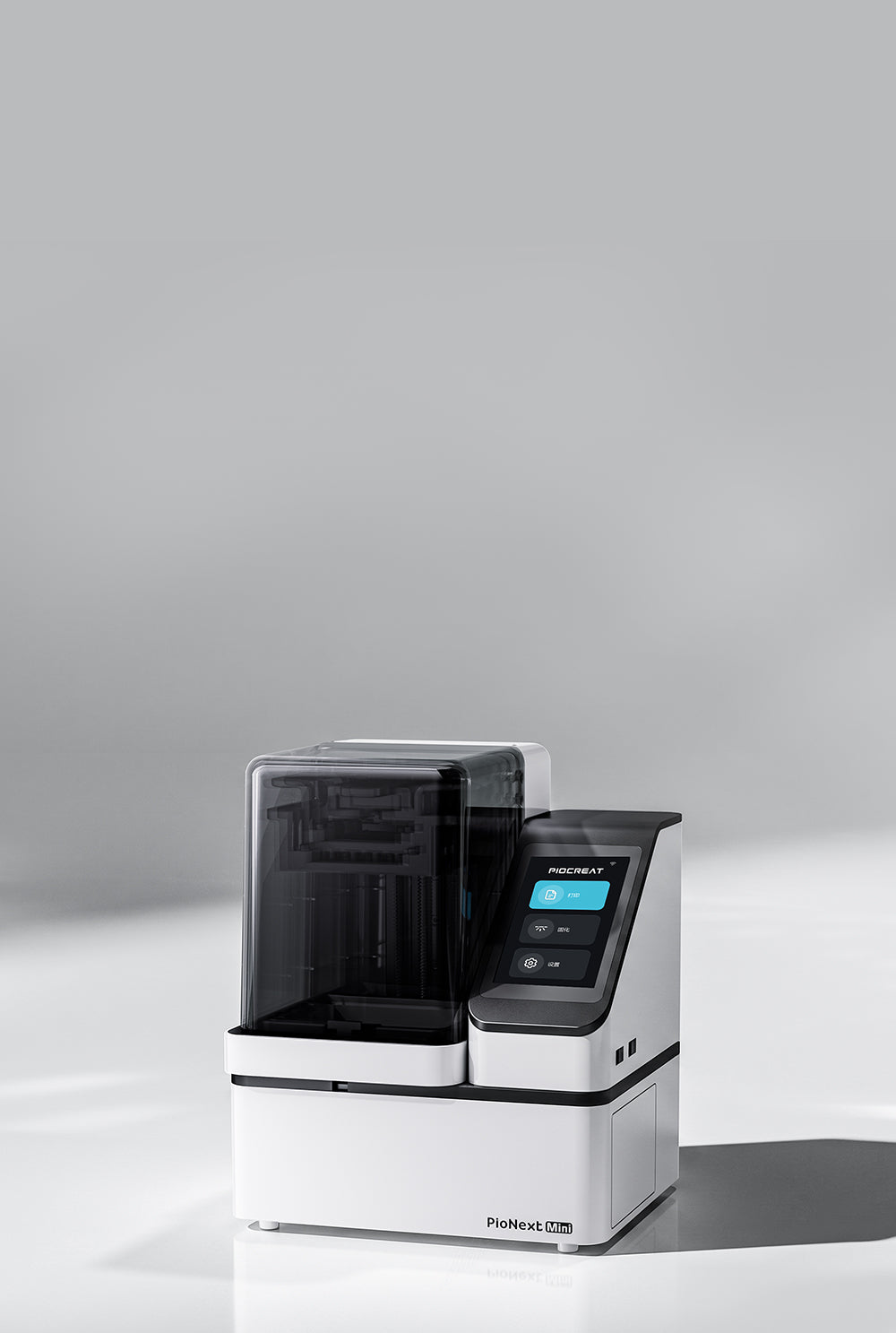

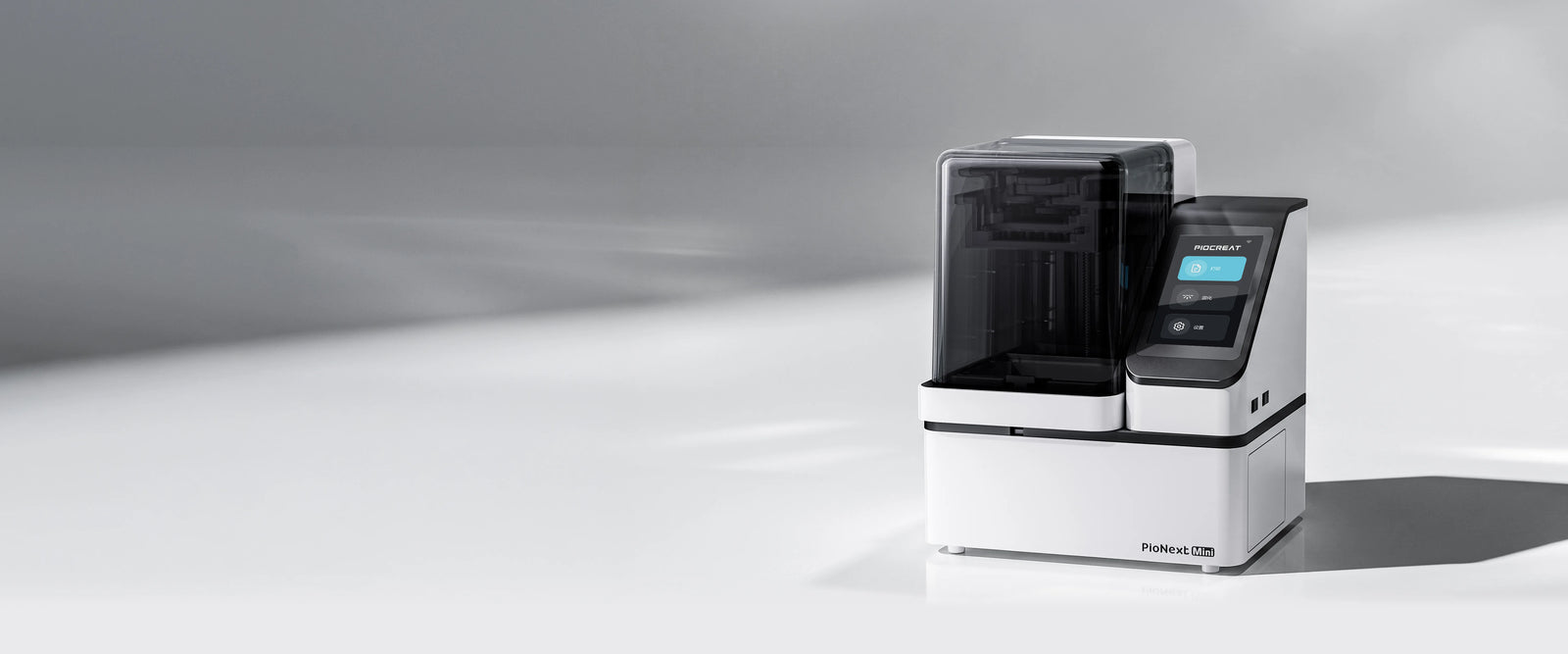

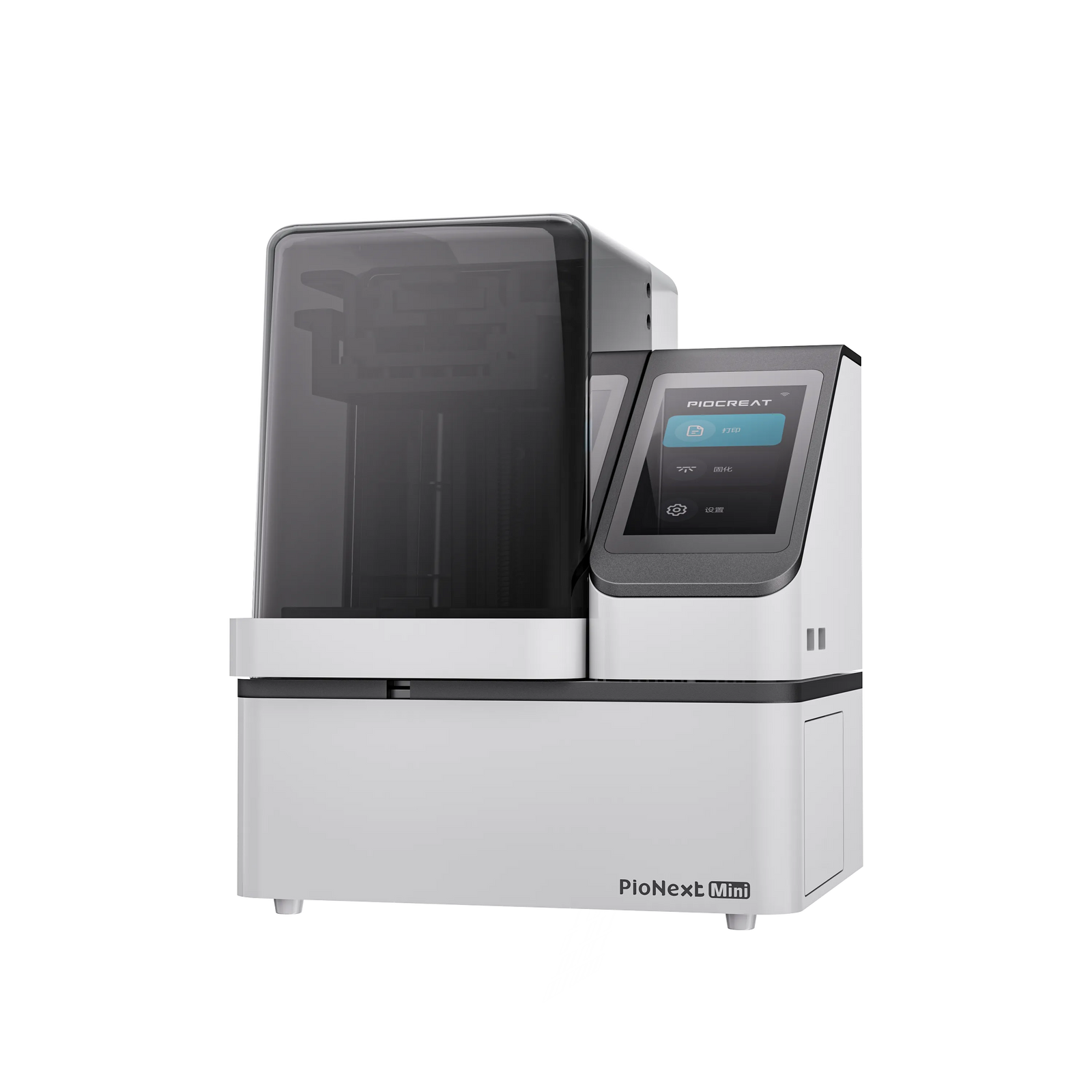

PioNext Mini
Compact 9K dental printing with integrated post-curing
PioNext Mini is a compact professional dental resin 3D printing system for clinics, chairside teams and smaller laboratories. A 9K monochrome LCD with 18 μm pixels supports detailed models, guides and restorative workflows within an 80 × 70 × 80 mm build volume.
The system combines 385 nm and 405 nm printing with a built-in 405 nm post-curing chamber. Dual resin vats, chamber heating up to 35°C, USB and Wi-Fi transfer, and support for PioCreat BOX and CHITUBOX Dental help keep short-run production organized without requiring a large equipment footprint.
Washing remains a separate controlled step. ADDITORYX can configure Mini with compatible PioCreat resins, washing guidance, spare vats and application support according to your intended dental workflow.
- 9K / 18 μmFine-detail LCD system
- 80 × 70 × 80 mmCompact build volume
- 385 + 405 nmDual wavelength
- IntegratedPost-curing chamber
Request a Mini package with compatible resin, washing guidance and application support.
Why PioNext Mini
A complete dental system in a smaller footprint
PioNext Mini is intended for clinics and compact laboratories that need precise resin printing without building a large equipment line around the printer.
18 μm pixels
Fine detail for dental applications
The 9K monochrome LCD supports fine margins, restorative patterns and detailed dental models in focused daily batches.

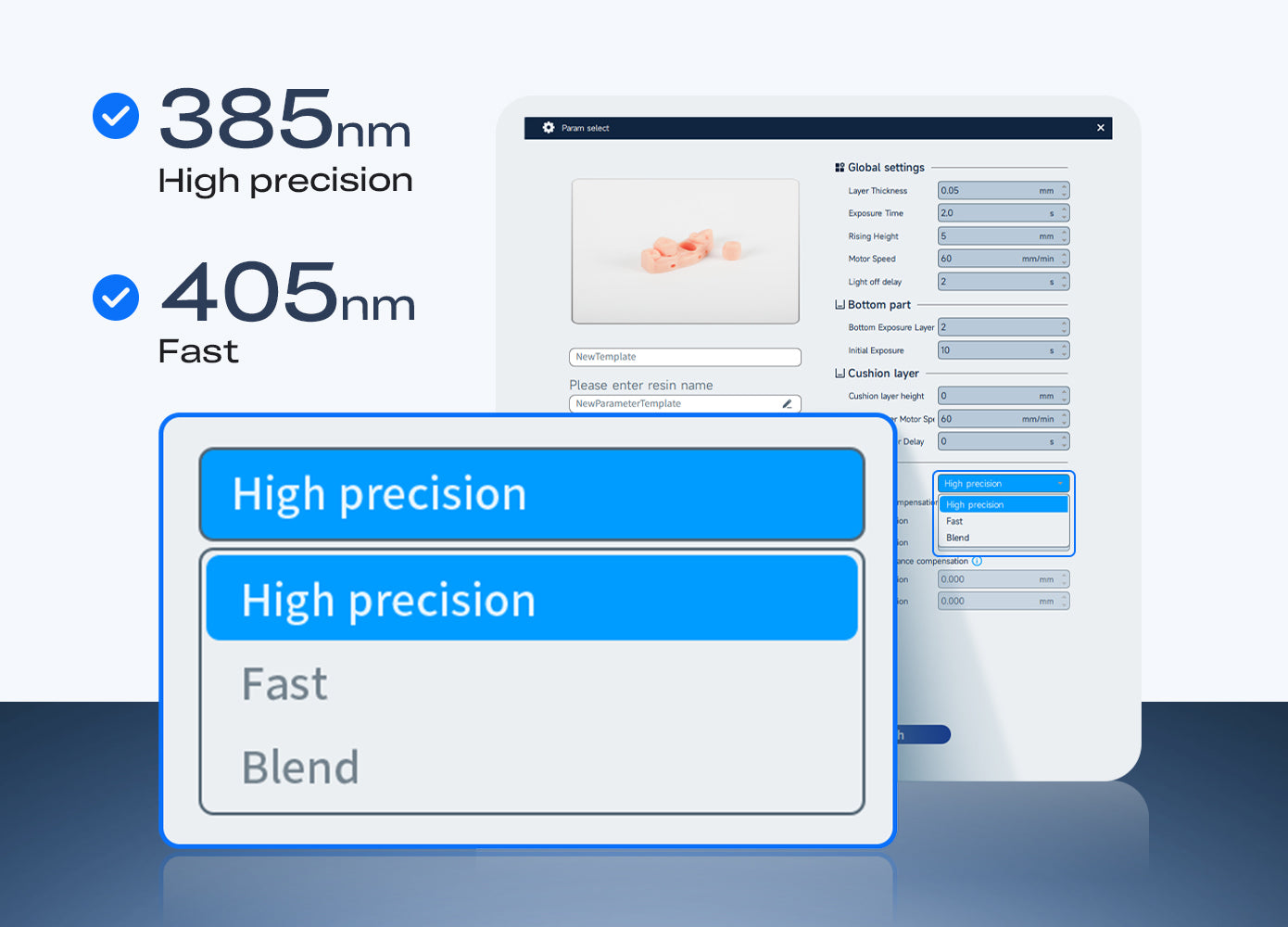

385 / 405 nm
Broader material flexibility
Dual-wavelength exposure expands compatibility across validated dental resin workflows. Confirm the correct profile for every material.
Up to 60 mm/h
Designed for responsive production
Fast exposure, a compact build area and direct file transfer help clinics and smaller laboratories respond to short-run requirements.

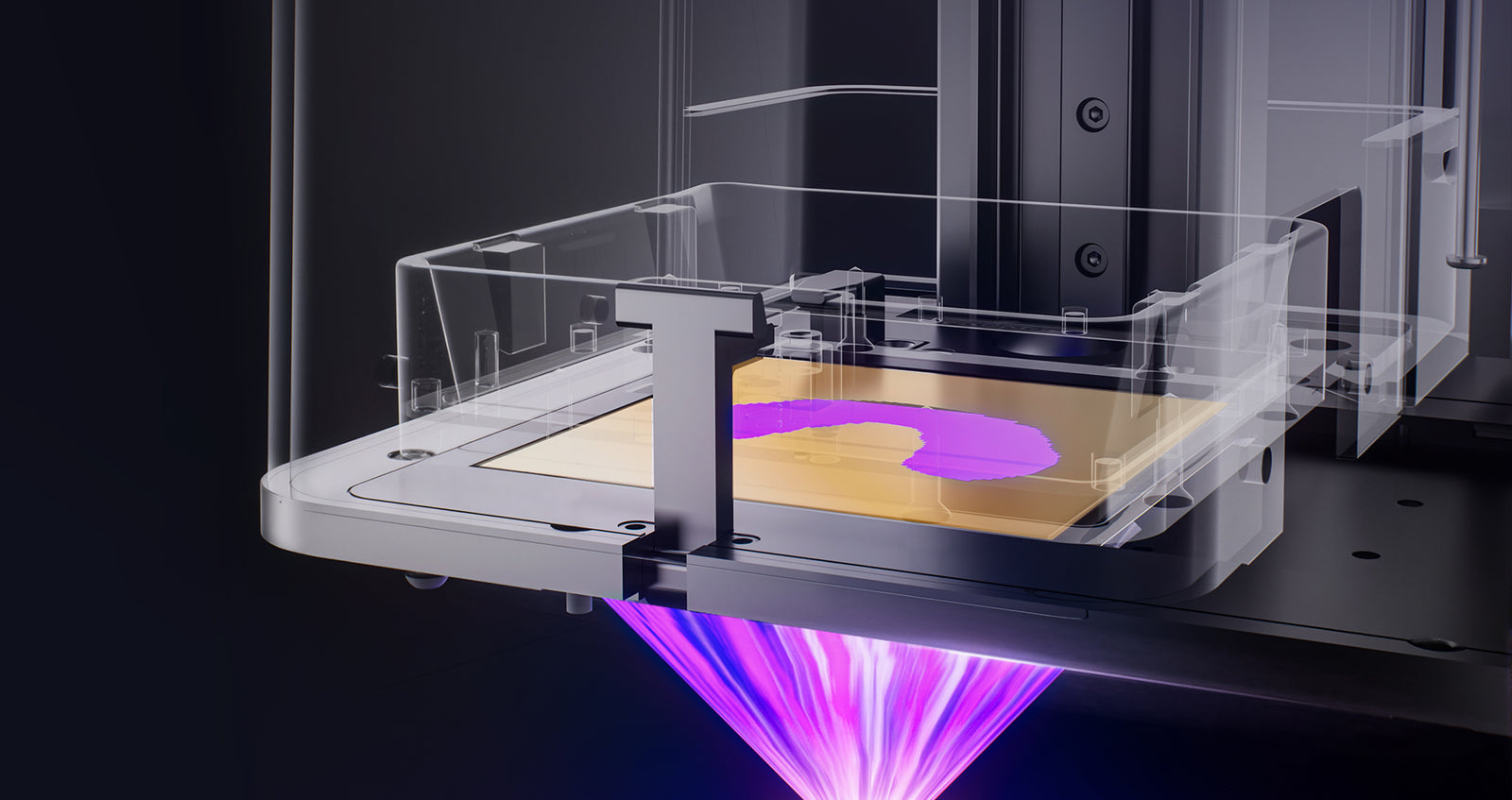

Monochrome LCD
Built for regular use
The monochrome imaging system is designed for efficient exposure and a longer service life than conventional color LCD architectures.
Dual vats
Simpler material changeover
Two resin vats support organized material switching, while the compact machine format keeps routine access and maintenance straightforward.
Applications
Focused output for chairside and small-lab needs
Select the validated PioCreat resin and profile for the intended application. ADDITORYX can help confirm the complete equipment and material workflow.
Dental models
Diagnostic and working models
Produce detailed models for treatment planning, restorative workflows and laboratory communication.
Guided workflows
Surgical guides
Pair the printer with a validated guide resin and controlled washing and curing procedure.

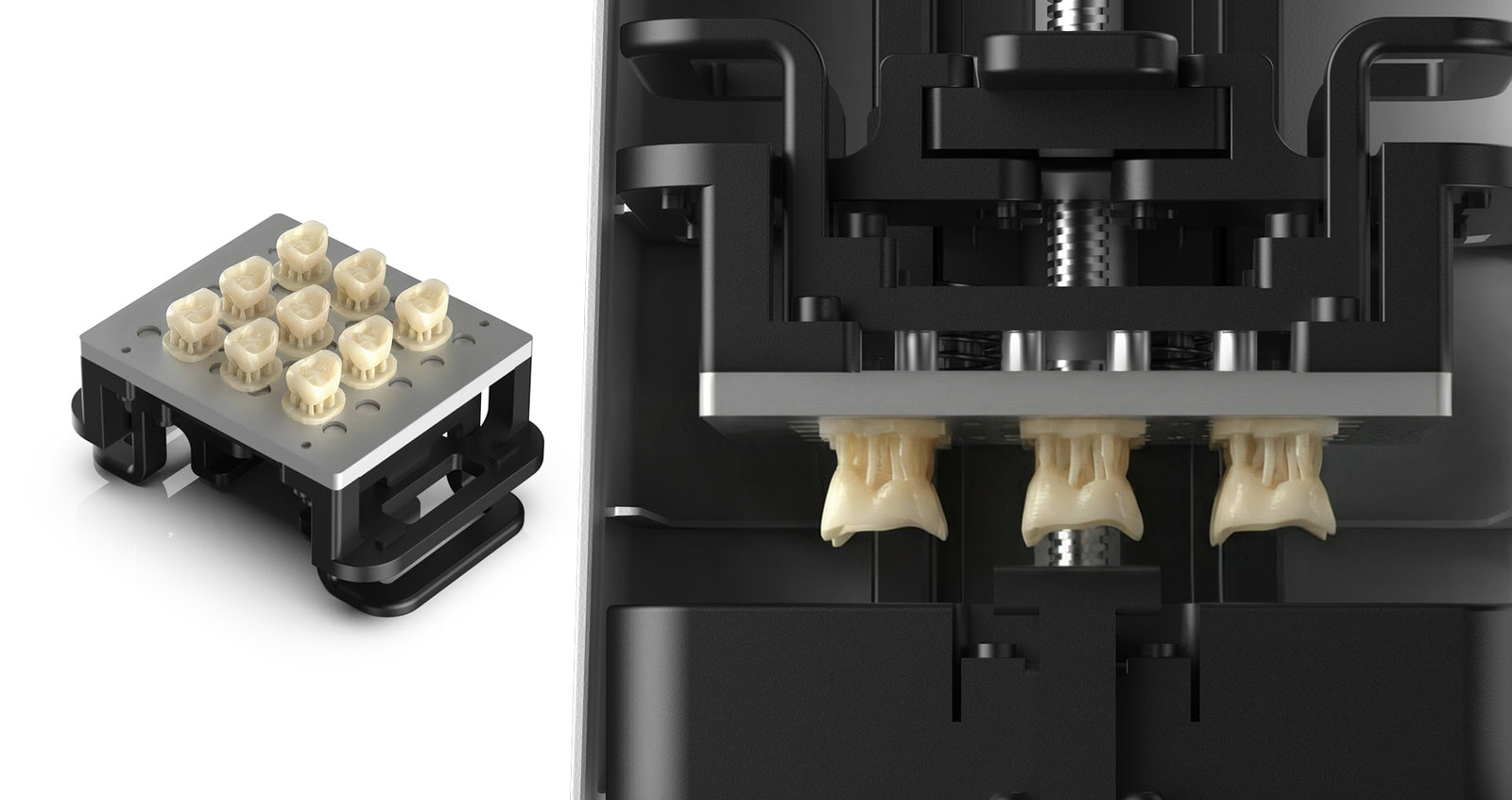

Restorative
Patterns and temporary applications
Support focused restorative production where material documentation and accurate post-processing are essential.
Complete workflow
Four controlled steps from file to finished part
Equipment capability is only one part of repeatable dental production. Resin selection, washing and curing must follow the material documentation.
Prepare the file
Use PioCreat BOX or CHITUBOX Dental, select the validated resin profile and prepare supports for the application.
Print consistently
Load the correct vat, confirm resin condition and temperature, then transfer the job by USB or Wi-Fi.

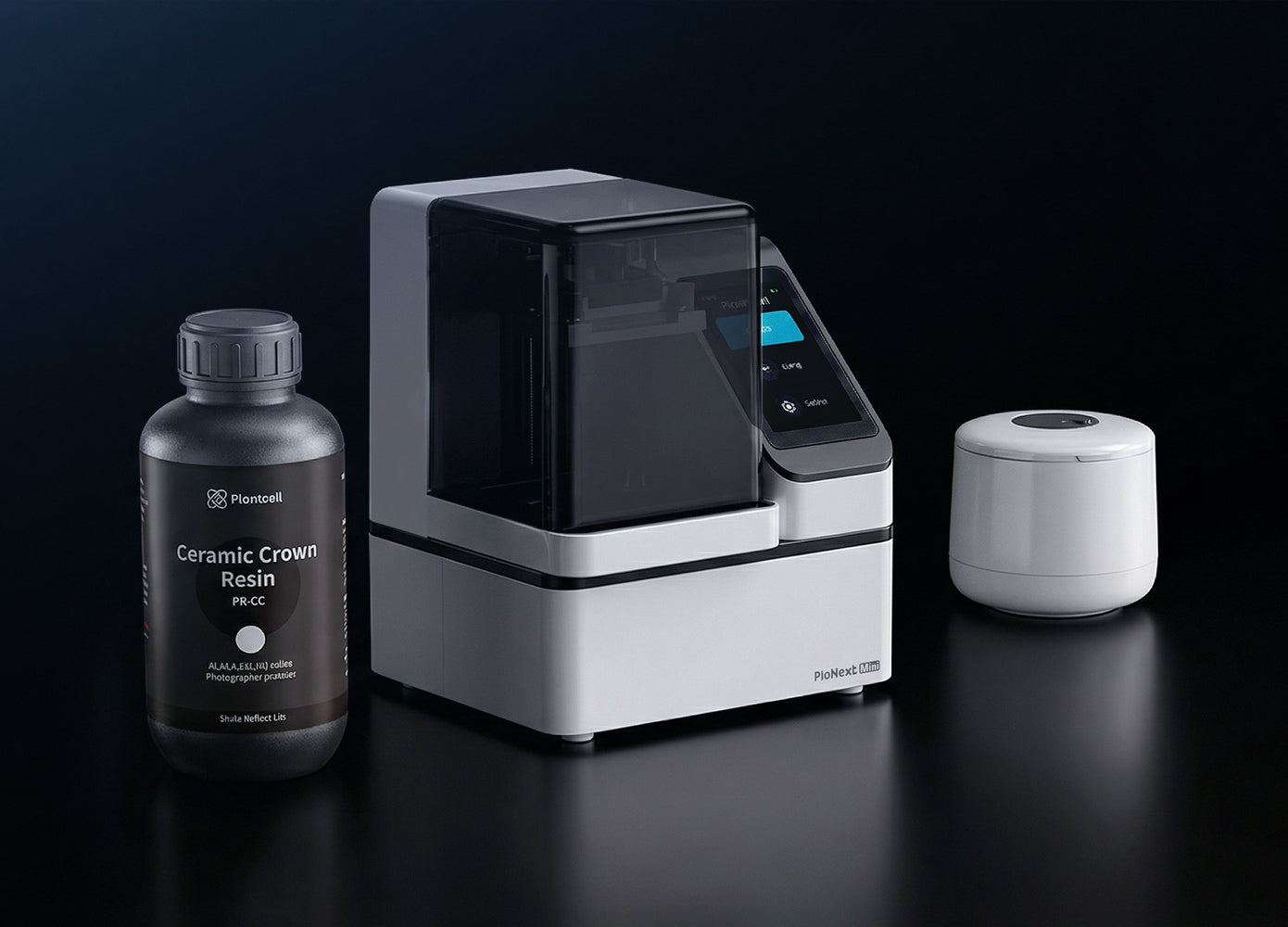

Wash externally
Clean parts using the material-specific solvent, time and handling procedure. External washing equipment is required.
Cure in the integrated chamber
Complete the validated 405 nm post-curing cycle inside Mini, then inspect the finished part before use.
Technical data
PioNext Mini specifications
Use these values to evaluate fit, capacity and facility requirements. Final configuration is confirmed with your quotation.
- Printing technology
- LCD resin 3D printing
- Build volume
- 80 × 70 × 80 mm
- Resolution
- 9K (8520 × 4320 px)
- Pixel size
- 18 μm
- Wavelength
- 385 nm, 405 nm
- Maximum print speed
- Up to 60 mm/h
- Layer thickness
- 0.01–0.1 mm

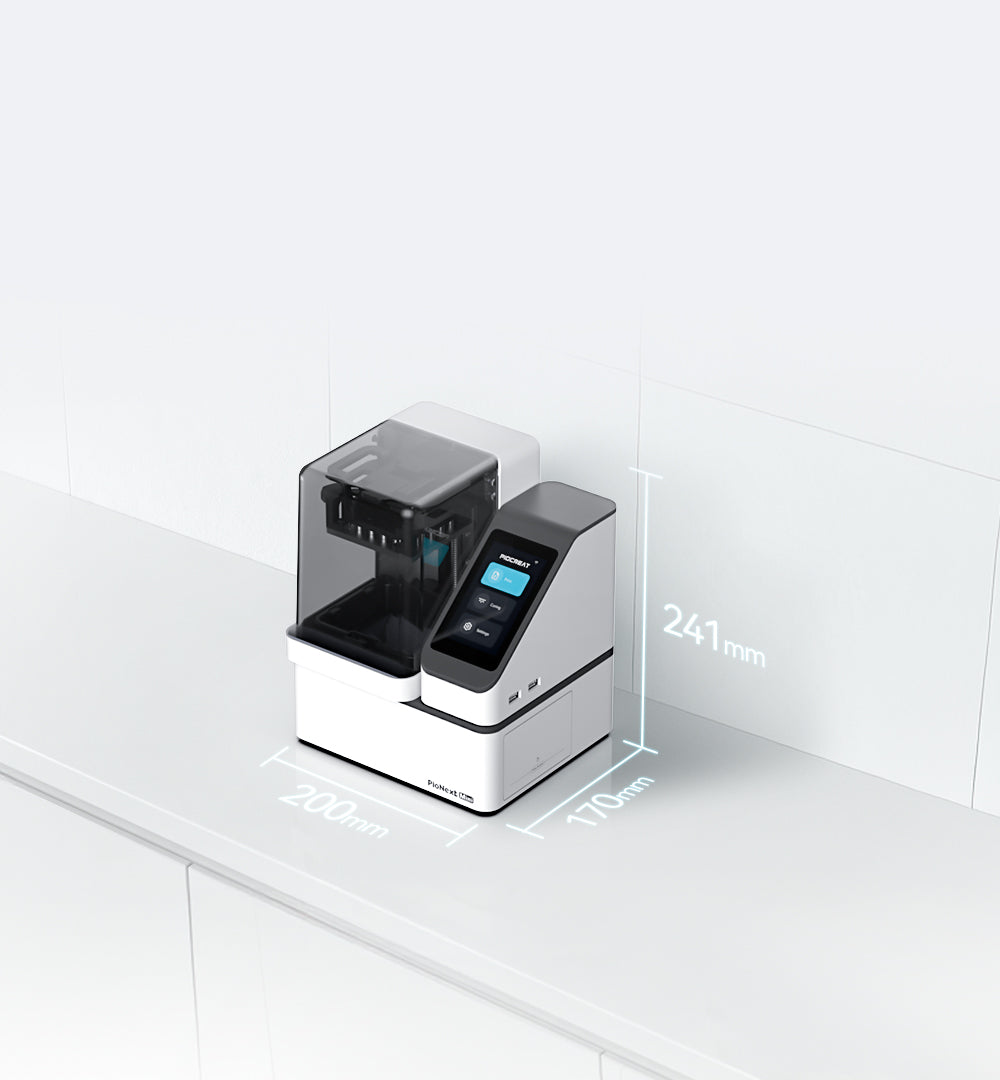

- Machine dimensions
- 200 × 170 × 241 mm
- Rated power
- 120 W
Frequently asked questions
Before you choose PioNext Mini
Contact us if your application requires a specific validated resin, document or production target.
Who is PioNext Mini designed for?
Mini is best suited to dental clinics, chairside teams and smaller laboratories that prioritize compact installation, fine detail and a simplified print-and-cure workflow.
Does PioNext Mini wash printed parts?
No. Washing is a separate controlled step. Use suitable washing equipment and follow the selected resin's instructions before post-curing.
Is post-curing integrated?
Yes. Mini includes a 405 nm curing chamber. The curing time and procedure still depend on the selected material.
Which wavelengths are supported?
PioNext Mini supports 385 nm and 405 nm exposure. Confirm resin compatibility and use the validated print profile.
Can ADDITORYX supply a complete workflow package?
Yes. We can quote the printer, compatible PioCreat resins, washing guidance, spare vats and application support according to your production needs.
Configure your system
Is PioNext Mini right for your dental workflow?
Share your applications, expected daily volume and preferred materials. We will prepare an equipment and resin proposal.
