10.3-inch 8K
Fine detail across a larger platform
The 7680 × 4320 monochrome LCD delivers a 29 μm XY pixel size for dental structures and detailed castable patterns.
Dental and jewelry production

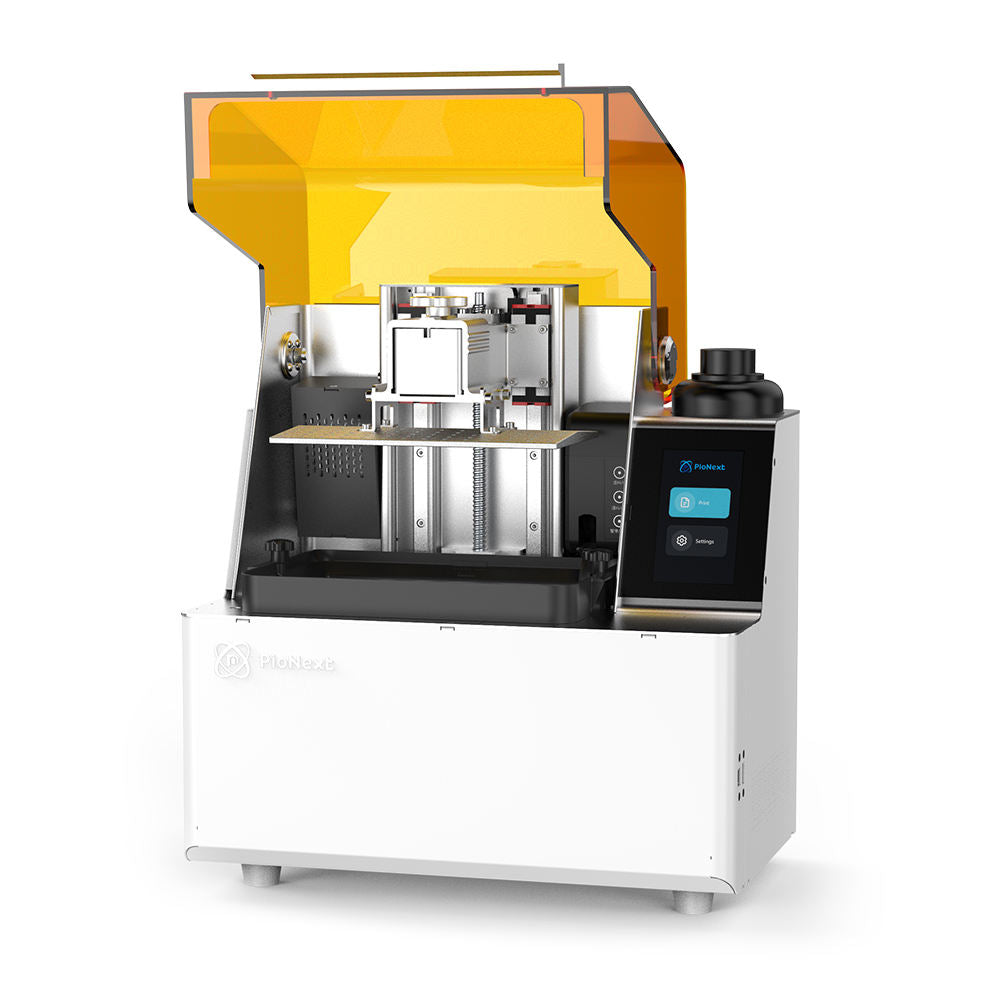

DJ89 PLUS
10.3-inch 8K platform for dental and jewelry production
DJ89 PLUS is a professional 10.3-inch 8K LCD resin 3D printer for dental laboratories, jewelry manufacturers and casting studios. Its 228 × 128 × 100 mm build volume, 7680 × 4320 resolution and 29 μm XY pixel size balance production capacity with the detail required for dental models and precision castable patterns.
The 405 nm system combines an integral light source with up to 95% stated uniformity, dual linear guides, a ball-screw Z-axis, automatic leveling, automatic resin feeding and a 20–35°C heated chamber. Eight-level anti-aliasing supports smoother model surfaces when the file orientation, resin and print profile are properly validated.
Dental and jewelry applications require separate resins, vats, profiles and downstream procedures. ADDITORYX can configure DJ89 PLUS with compatible PioCreat materials, CD-X3 washing, UV02 curing, spare parts and workflow guidance for the intended production process.
- 10.3-inch 8KMonochrome LCD
- 228 × 128 × 100 mmBuild volume
- 29 μmXY pixel size
- 20–35°CHeated chamber
Request a dental or jewelry package with compatible resin and post-processing guidance.
Why DJ89 PLUS
A flexible 8K platform for professional resin production
DJ89 PLUS combines a 405 nm LCD system, stable mechanics and workflow automation for users serving both dental and jewelry applications.

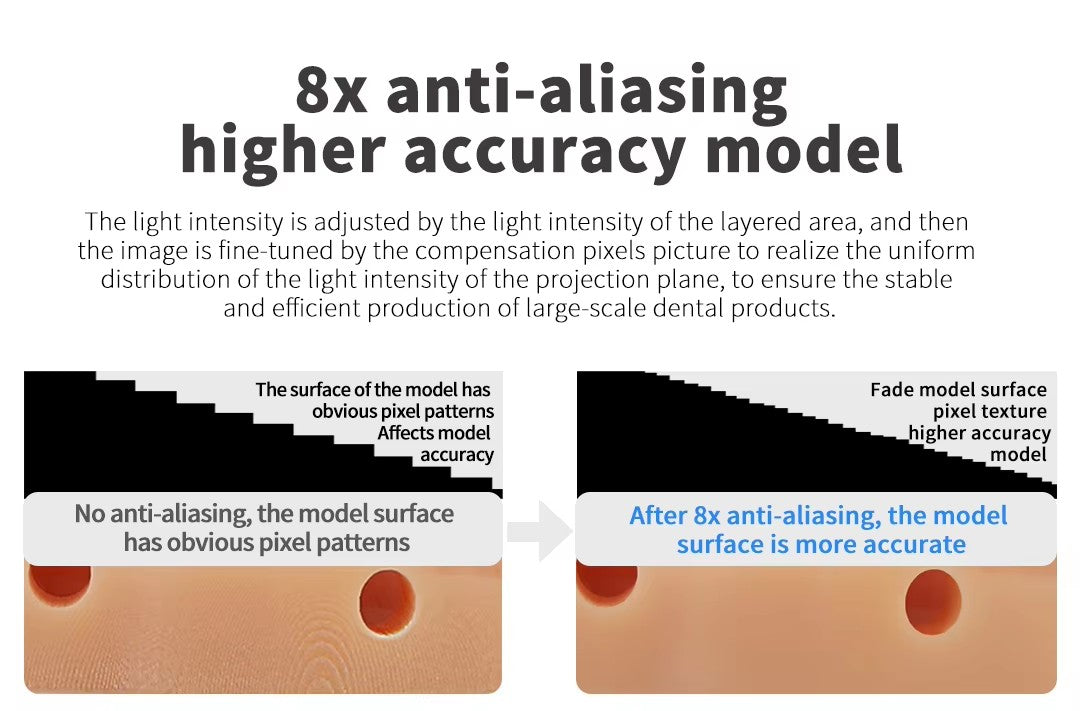

8× anti-aliasing
Smoother model surfaces
Eight-level anti-aliasing reduces visible pixel stepping when the selected profile and model orientation are properly validated.
Up to 95% uniformity
Consistent platform exposure
The integral light source is designed to distribute exposure consistently across the working area.
Dual rails + ball screw
Stable vertical motion
Dual linear guides and a ball-screw Z-axis support repeatable layer positioning during densely nested jobs.
Leveling + feeding
Production-oriented automation
Automatic leveling and supported resin feeding reduce routine setup while keeping resin and vat checks under operator control.

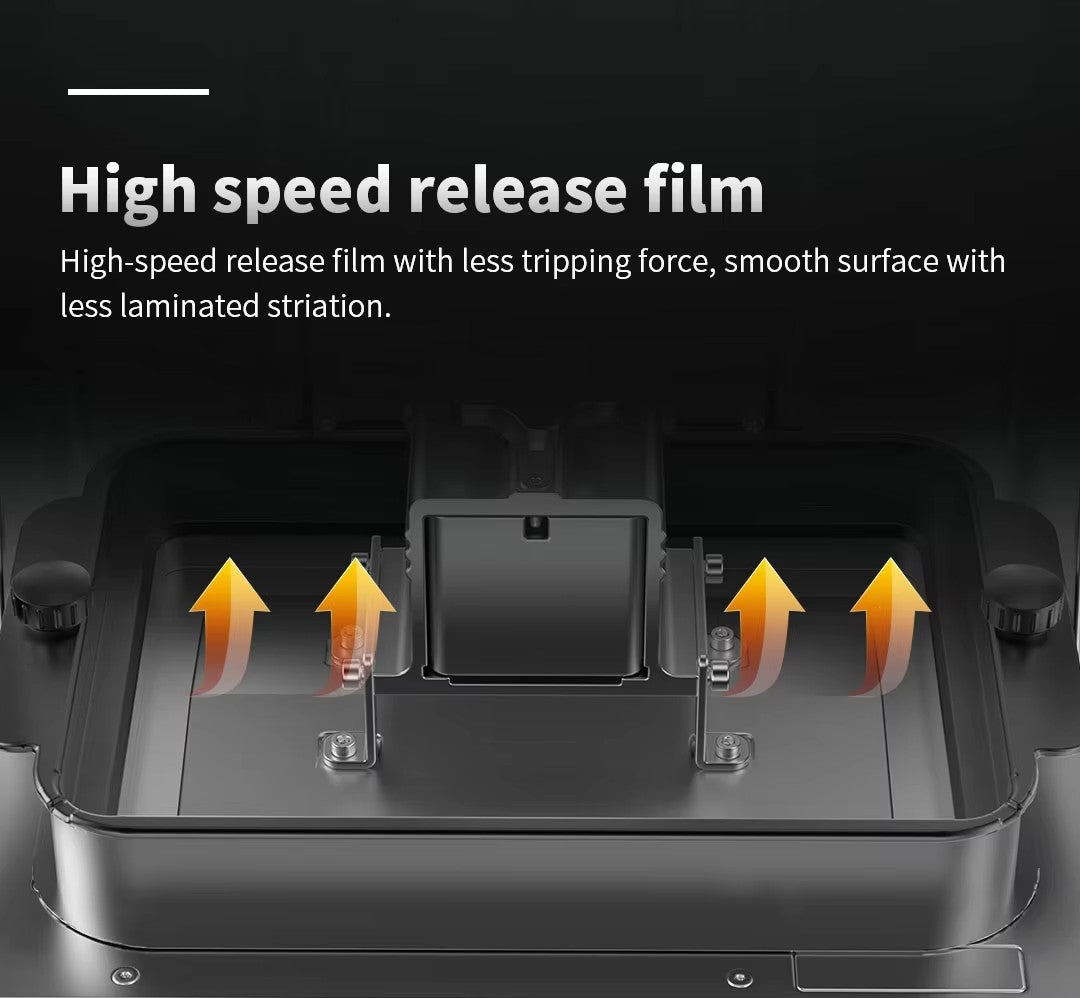

High-speed release film
Controlled layer separation
The release-film system is designed to reduce separation resistance and support a stable printing cycle.
Applications
One machine, separately controlled material workflows
Dental and jewelry work can share the same printer platform, but vats, profiles, cleaning and downstream procedures must remain separated by resin and application.

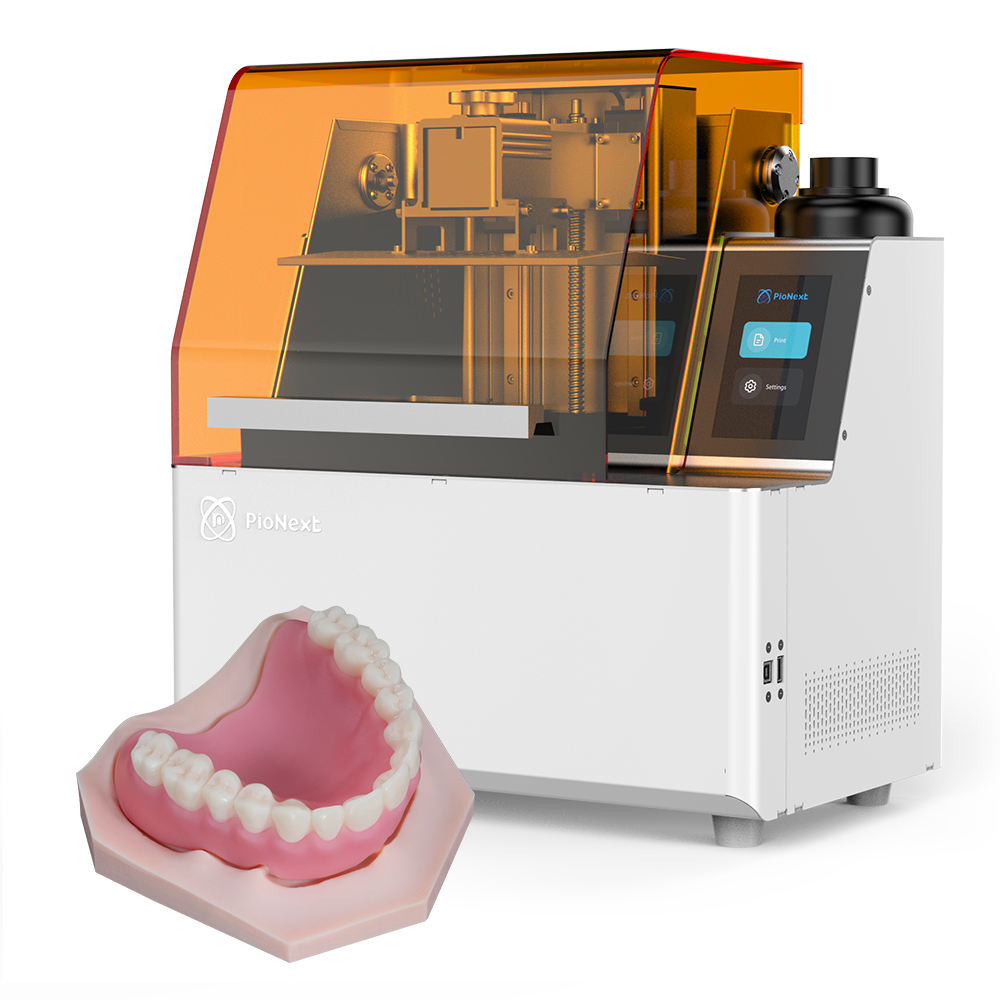

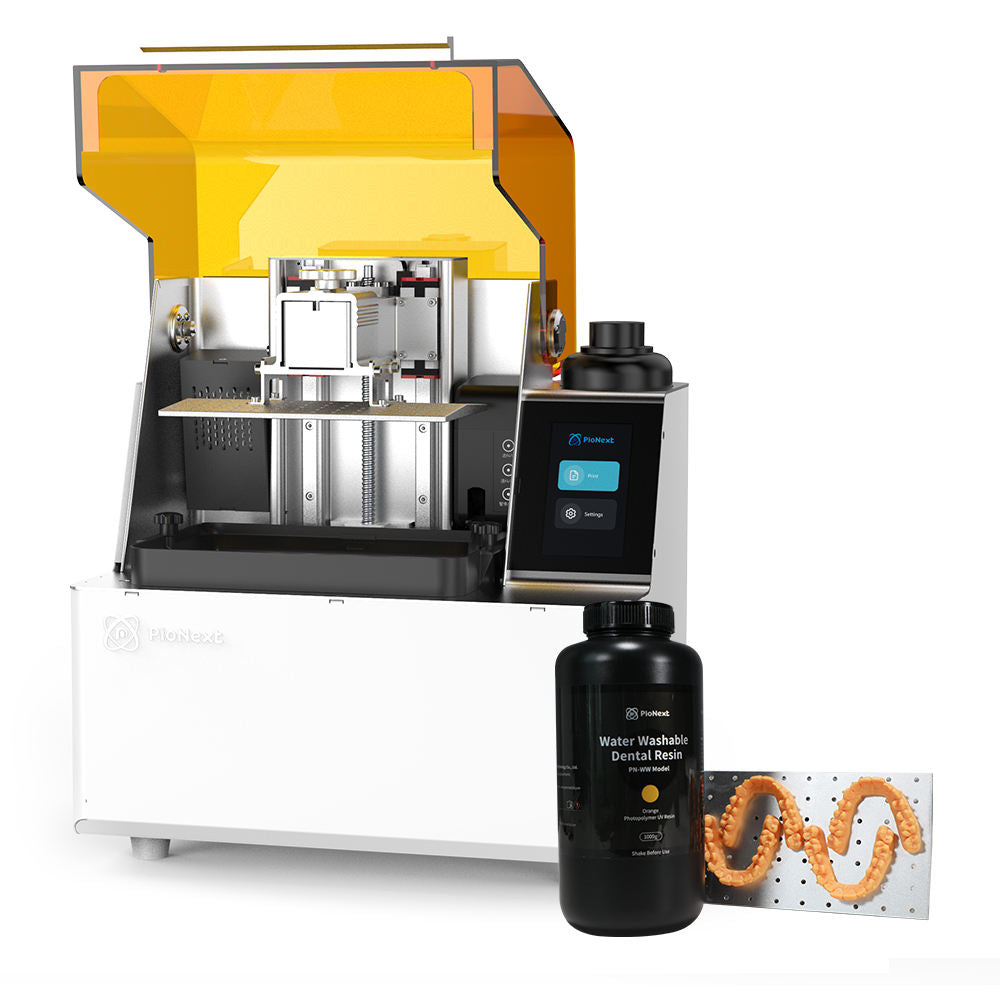

Dental
Models and compatible production parts
Produce detailed models and application-specific parts using the correct validated 405 nm dental resin workflow.

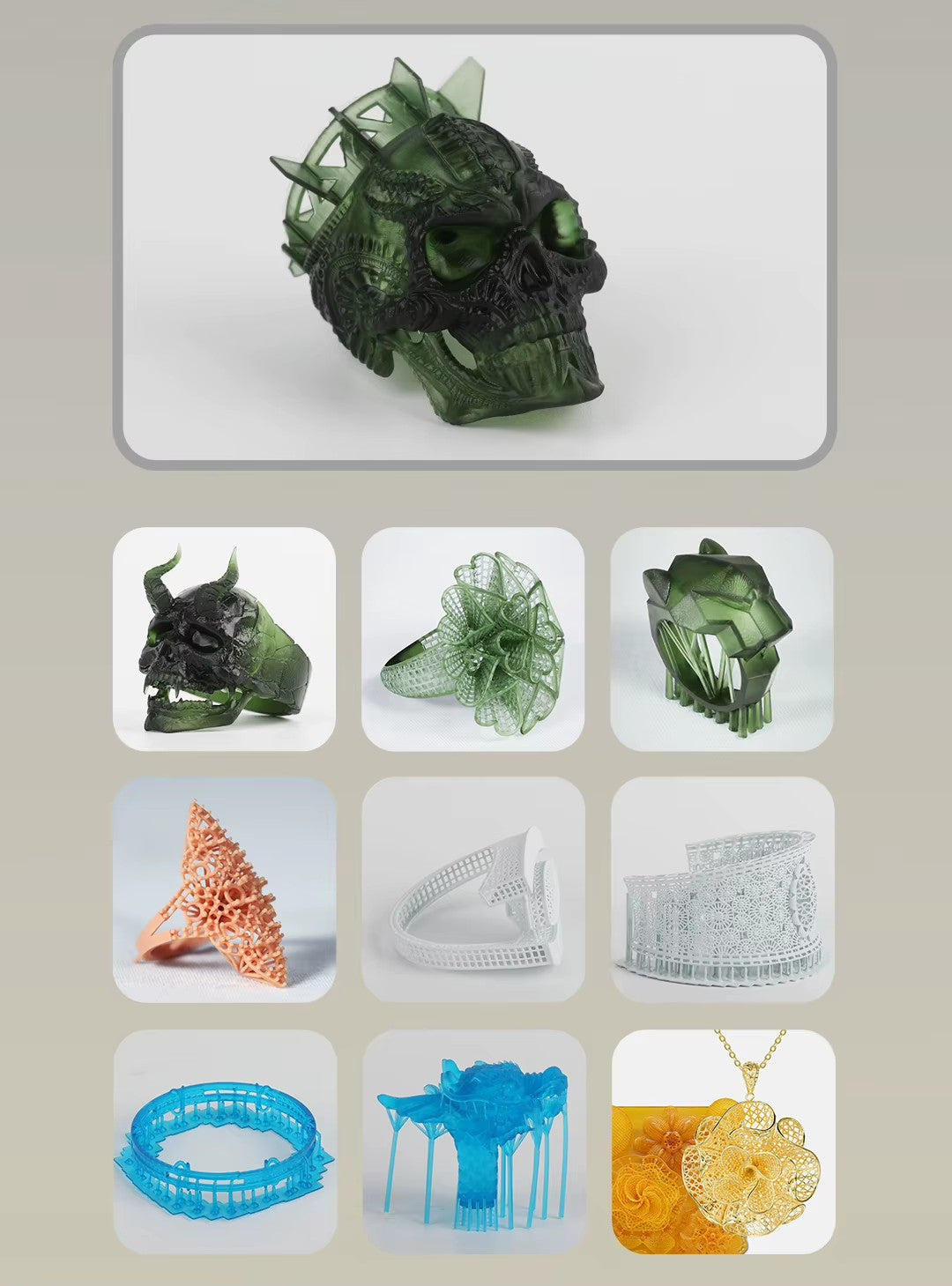

Jewelry
Castable master patterns
Print intricate jewelry patterns with a compatible PioCreat castable resin and a controlled investment and burnout process.

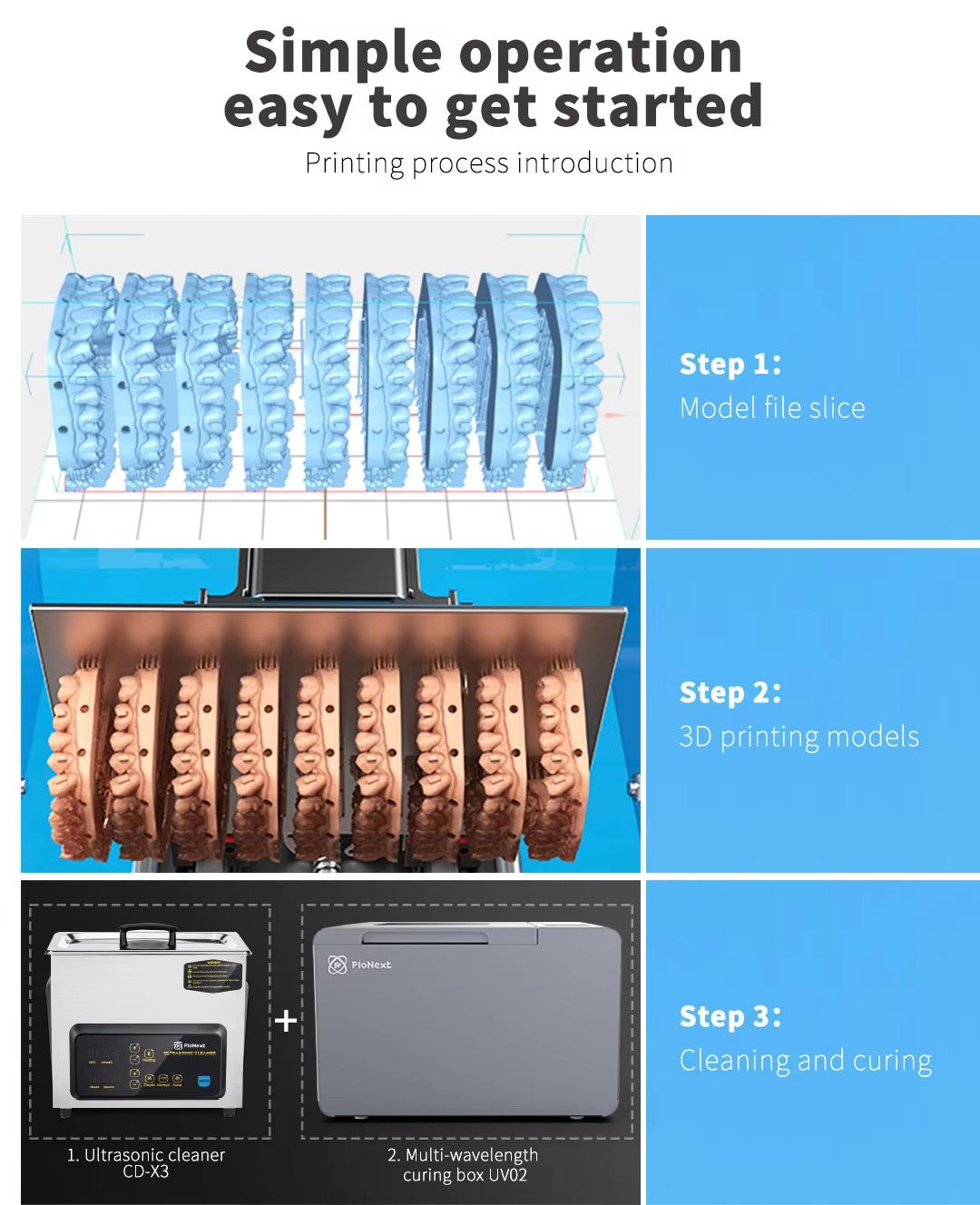

Complete workflow
Print, wash and cure
Connect file preparation and printing with appropriate CD-X3 washing and UV02 post-curing procedures for the chosen resin.
Accessories and maintenance
Plan consumables and critical service parts
ADDITORYX can help identify compatible replacement components and build a practical maintenance stock for production use.

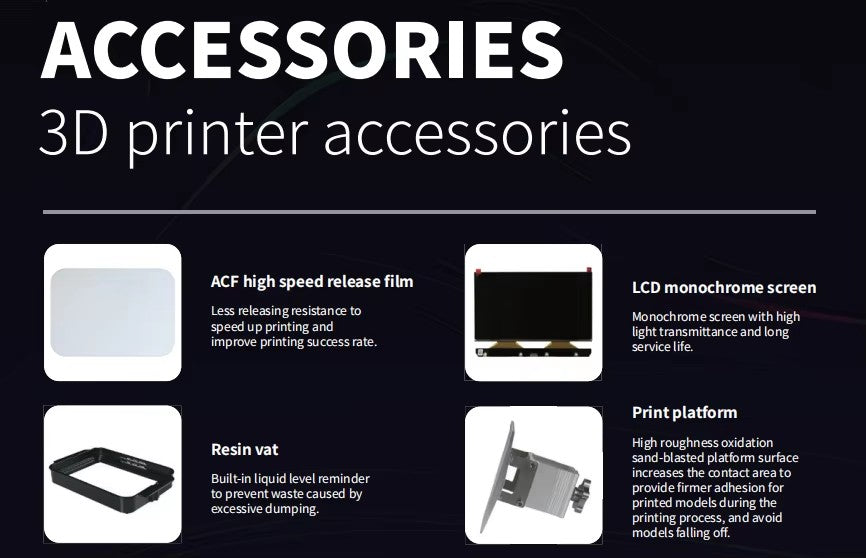

Service parts
Maintain the production system
Release film, resin vats, build platforms and replacement LCD components can be quoted according to the machine serial number and maintenance requirement.
Application workflow
Configure the process around the material
Machine capability is only one part of repeatable production. Resin handling, profiles and post-processing must be validated as a complete workflow.
Choose the application
Select the dental or jewelry resin first, then prepare the file with a validated PioCreat BOX profile.
Control the print process
Confirm the vat, feed system, resin condition and build platform before starting the batch.
Wash and cure
Follow the resin-specific cleaning and UV post-curing procedure with suitable external equipment.
Finish or cast
Inspect dental parts before downstream use, or continue jewelry patterns through investment, burnout and casting.
Technical data
DJ89 PLUS specifications
Specifications below follow the current PioCreat English product page and English catalog. Confirm electrical configuration and supplied accessories for the destination market before ordering.
- Printing technology
- LCD resin 3D printing
- Build volume
- 228 × 128 × 100 mm
- Resolution
- 8K (7680 × 4320 px)
- Pixel size
- 29 μm
- Wavelength
- 405 nm
- Maximum print speed
- Up to 60 mm/h
- Layer thickness
- 0.01–0.1 mm
- Machine dimensions
- 450 × 290 × 500 mm
- Printing screen
- 10.3-inch 8K monochrome LCD
- Touch screen
- 5-inch color touch screen
- Z-axis
- Dual linear guides + ball screw
- Stated LCD life
- 2,000 hours
- Anti-aliasing
- 8×
- Automatic leveling
- Supported
- Automatic resin feeding
- Supported
- Heated chamber
- 20–35°C
- Slicer
- PioCreat BOX
- Operating system
- Windows 7 or later 64-bit; macOS
- Interface languages
- 13 languages
- Rated voltage
- 100–120 / 200–240 V~, 50/60 Hz
- Net / gross weight
- 21.75 / 26.28 kg
Frequently asked questions
Planning a DJ89 PLUS workflow
Use these answers as configuration guidance; material-specific processing instructions remain controlling.
Can one DJ89 PLUS serve dental and jewelry production?
Yes, but resin vats, profiles, cleaning and downstream processes must be managed separately by material and application.
Which resin wavelength does DJ89 PLUS use?
DJ89 PLUS is designed for compatible 405 nm photosensitive resins. Confirm the validated profile and intended application for every material.
Does the printer include washing and curing?
No. External washing and UV post-curing equipment are required and should be selected for the resin workflow.
Does DJ89 PLUS support automatic feeding?
Yes. Automatic resin feeding is supported, while operators remain responsible for resin condition, compatibility and feed-system inspection.
Can ADDITORYX configure a jewelry casting workflow?
Yes. Share the pattern type, investment, metal and burnout process so we can recommend an appropriate printer, castable resin and post-processing package.
Dental or jewelry
Configure DJ89 PLUS for your application
Share your parts, resin requirements and production goals. We will prepare a machine, material and post-processing proposal.
