Open-Material Dental 3D Printing: How to Evaluate Third-Party Resin Compatibility
Open-material dental 3D printing is becoming a serious purchasing consideration for clinics, laboratories and distributors.
The appeal is obvious.
A printer that can work with materials from more than one manufacturer can give a dental business:
- more application choices;
- access to new resin technologies;
- additional supply options;
- more flexibility when a material is unavailable locally;
- the ability to evaluate different material properties without replacing the printer.
But there is an equally important warning:
“The wavelength matches” does not mean “the resin is validated.”
A bottle labeled 405 nm may cure under a 405 nm printer, yet still produce unacceptable dimensional accuracy, weak mechanical properties, poor fit, incomplete curing or an invalid clinical workflow.
Professional dental production therefore requires a more disciplined question:
Is this resin compatible with this printer, this application and this complete print–wash–cure workflow?
This guide explains how to answer that question.
What Does “Open Material” Mean in Dental 3D Printing?
An open-material dental 3D printer gives the user some level of access to third-party photopolymer materials instead of requiring only the printer manufacturer's proprietary resin.
The degree of openness varies considerably.
Fully open parameter access
Some platforms give experienced users broad access to exposure and process settings, allowing them to create or modify third-party resin profiles.
Validated third-party material library
Some manufacturers maintain a library of materials from outside resin manufacturers with established printer settings.
Manufacturer ecosystem plus selected third-party support
Other platforms develop their own resin ecosystem but validate selected outside materials.
Wavelength-compatible but not formally validated
A printer may physically expose a third-party resin at the required wavelength without the manufacturer providing an approved profile or application validation.
These four situations are not equivalent.
The phrase open material should therefore be treated as the beginning of the compatibility discussion, not the conclusion.
Why Material Freedom Matters
A dental printer may remain in service for years.
Resin chemistry evolves much faster.
New materials can bring:
- improved strength;
- better translucency;
- easier polishing;
- faster processing;
- different shades;
- new clinical indications;
- improved temperature resistance;
- better burnout;
- new denture or restorative workflows.
A highly restricted printer can limit how quickly a laboratory adopts those materials.
An open-material platform can reduce that constraint.
Asiga, for example, explicitly markets an Open Material Architecture and currently lists more than 650 materials across its broader material ecosystem. Formlabs has also expanded its Open Material Mode, and since January 2026 new Form 4B and Form 4BL packages include OMM by default, with third-party dental print settings available for selected materials.
This is evidence that material flexibility is no longer a niche feature.
It is becoming part of mainstream professional purchasing decisions.
Open Does Not Mean Uncontrolled
Dental applications are different from printing a decorative prototype.
A dental model, surgical guide, splint, temporary restoration or denture component may require dimensional, mechanical, biological and processing performance that depends on the entire workflow.
A responsible open-material workflow therefore asks:
- Is the resin physically compatible with the printer?
- Is an appropriate print profile available?
- Is dimensional performance acceptable?
- Is the intended dental application supported?
- Is the washing process defined?
- Is post-curing defined?
- Is the documentation appropriate for the intended market?
- Can the result be reproduced consistently?
Skipping these questions may save setup time and create much larger production problems later.
The 8 Compatibility Checks Every Buyer Should Make
1. Check the printer wavelength
Most current professional dental photopolymer systems use 385 nm, 405 nm, or support both.
A resin must be photochemically responsive to the printer's light source.
Examples:
- a 385 nm-only material should not be assumed to behave correctly on a 405 nm-only system;
- a material specified for both 385 and 405 nm gives broader physical compatibility;
- a dual-wavelength printer can expand the range of materials that may be evaluated.
PioNext Mini, for example, supports both 385 nm and 405 nm exposure, which PioCreat positions as a material-flexibility feature.
But wavelength is only the first gate.
It does not determine exposure dose, accuracy, mechanical performance or clinical validation.
2. Confirm the print profile
Different resins require different:
- layer exposure;
- bottom exposure;
- lift behavior;
- compensation;
- temperature;
- support strategy;
- layer thickness.
Even two materials from the same application category can require different settings.
A compatible workflow should ideally have one of the following:
Manufacturer-supplied profile
The printer manufacturer has published settings.
Resin-manufacturer profile
The resin manufacturer has developed and tested printer-specific settings.
Distributor/application-team validation
A qualified supplier has established a controlled profile and can provide the workflow details.
User-developed profile
Possible on sufficiently open systems, but this shifts validation responsibility toward the user.
For professional dental production, avoid assuming that one generic “405 nm” profile is enough.
3. Evaluate dimensional accuracy and fit
The resin changes how the printed geometry cures.
Important effects can include:
- polymerization shrinkage;
- light penetration;
- overcure;
- undercure;
- edge definition;
- support deformation;
- thermal behavior.
That means the same STL file can produce different dimensions with different materials.
For dental applications, evaluate representative geometries.
Examples include:
- full-arch orthodontic models;
- removable die models;
- crown margins;
- guide sleeves;
- denture bases;
- casting patterns.
Do not qualify a resin solely with a simple calibration cube if the real production application is a complex dental object.
4. Check the intended application
A material being printable does not mean it is appropriate for every dental use.
Dental resins may be developed for very different roles:
- orthodontic models;
- restorative models;
- removable dies;
- casting patterns;
- surgical guides;
- temporary restorations;
- crown and bridge;
- gingiva simulation;
- denture base;
- direct aligner or other orthodontic workflows.
The application determines the performance requirements.
For example, a model resin may be selected primarily for:
- dimensional consistency;
- surface quality;
- speed;
- thermoforming resistance.
A surgical guide material has different requirements.
A temporary restorative resin has different requirements again.
Always match the material to the intended indication rather than selecting only by color, wavelength or price.
5. Read the IFU
IFU means Instructions for Use.
For professional dental materials, this is one of the most important documents in the workflow.
The IFU may define:
- intended use;
- indications;
- contraindications;
- compatible equipment;
- layer settings or process requirements;
- washing conditions;
- post-curing;
- storage;
- warnings;
- finishing requirements.
For regulated or intraoral applications, the IFU is not optional reading.
If a seller cannot provide a current IFU for an application-specific dental resin, that should trigger further questions.
6. Review the SDS and technical data
SDS means Safety Data Sheet.
It covers chemical handling and safety information such as:
- hazard classification;
- protective equipment;
- skin and eye exposure;
- spill procedures;
- storage;
- transport;
- disposal.
A TDS or technical/property sheet serves a different purpose.
It may include:
- viscosity;
- tensile properties;
- flexural properties;
- hardness;
- elongation;
- color;
- wavelength;
- thermal properties;
- other application-specific performance data.
A mature dental resin portfolio should be supported by more than marketing copy.
For distributor and laboratory evaluation, a practical documentation set often includes:
IFU + SDS + TDS/property data + applicable certifications + printer/process guidance
7. Validate washing and post-curing
A dental resin workflow is not finished when the print ends.
Post-processing changes final properties.
Washing affects residual uncured resin.
Post-curing can affect:
- conversion;
- mechanical strength;
- dimensional stability;
- color;
- surface behavior;
- biocompatibility where applicable.
A resin that “prints successfully” but is cured with an unsuitable process may fail to deliver its intended performance.
Therefore, confirm:
- wash solvent or cleaning method;
- wash duration;
- drying;
- curing wavelength;
- curing time;
- curing temperature if specified;
- part orientation during curing where relevant.
This is why a complete dental solution should be evaluated as:
Printer + Resin + Wash + Cure
not simply:
Printer + Bottle
8. Confirm regulatory and regional requirements
Documentation varies by material and market.
Potential requirements may include:
- CE-related documentation;
- FDA status where applicable;
- ISO 10993 biocompatibility testing;
- ISO 13485 quality-system documentation;
- REACH;
- RoHS;
- SDS;
- local medical-device requirements.
Do not assume that a logo on a website means every product, every indication and every country are covered identically.
The exact controlled document matters.
For clinical applications, confirm the current material IFU and regional indication before use.
Open-Material Compatibility: A Practical Decision Matrix
| Question | If YES | If NO |
|---|---|---|
| Does the wavelength match? | Continue evaluation | Stop |
| Is there a printer-specific profile? | Lower setup risk | Profile development required |
| Is the intended application supported? | Continue | Do not use for that indication |
| Is IFU available? | Review workflow | Request documentation |
| Are SDS/TDS available? | Review safety/performance | Supplier maturity should be questioned |
| Is wash/cure defined? | Validate complete workflow | Do not assume |
| Is dimensional performance tested? | Move toward production trial | Run application test |
| Are regional requirements satisfied? | Consider controlled adoption | Resolve before clinical use |
This table captures the core idea:
Compatibility is a chain. The weakest missing link matters.
Manufacturer Resin vs. Third-Party Resin
Open-material printing does not mean manufacturer-developed resin has no value.
In many cases, the manufacturer's own resin is the easiest place to start.
Advantages of manufacturer-developed resin
- profiles may already be optimized;
- technical support has fewer unknown variables;
- print/wash/cure may be developed together;
- troubleshooting is simpler;
- documentation can be easier to trace.
Advantages of third-party resin
- broader application choice;
- access to specialist chemistry;
- local availability;
- additional suppliers;
- ability to adopt new materials;
- more freedom in portfolio design.
The best material strategy is often not ideological.
It is practical.
A laboratory may use manufacturer resin for one application and third-party resin for another.
Why Printer Manufacturers Developing Their Own Resin Still Matter
A printer manufacturer with its own materials R&D has an important advantage: it can study the interaction between hardware and resin internally.
That can include:
- optical dose;
- exposure behavior;
- support strategy;
- dimensional compensation;
- post-curing;
- surface quality;
- production reliability.

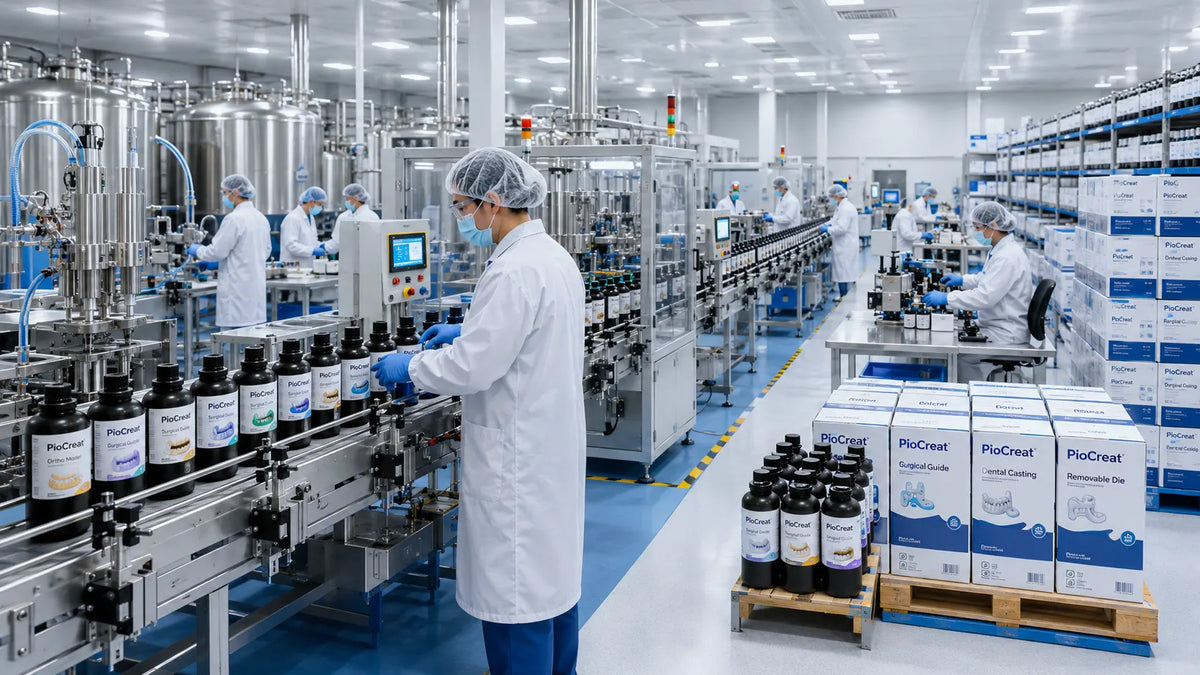

PioCreat's dental portfolio is built around that broader approach.
It supplies professional LCD dental printers together with its own application-specific resin portfolio and post-processing equipment.
The current PioCreat resin range represented on ADDITORYX covers applications including:
- Ceramic Crown Resin;
- Crown & Bridge Resin;
- Clear Aligner Resin;
- Ortho Model Resin;
- Ortho Model Resin 2.0;
- Temporary Restoration Resin;
- Surgical Guide Resin;
- Try-in Resin;
- Removable Die Model Resin;
- Dental Casting Resin;
- Gingiva Mask Resin;
- Water-Washable Dental Resin;
- Denture Base Resin;
- Flexible Denture Base Resin.
This breadth is important because it demonstrates material-development capability across different workflow requirements.
However, it should not be interpreted as a claim that every PioCreat material is validated on every third-party printer.
For cross-platform use, compatibility must still be checked application by application.
Which Resins Are Easiest to Evaluate in an Open Ecosystem?
The practical adoption barrier differs by application.
For many distributors and laboratories, the easiest initial evaluation may be a material that does not immediately become a long-term intraoral final device.
Examples may include:
- orthodontic model resin;
- general dental model resin;
- removable die model resin;
- casting pattern resin.
These applications can be useful starting points because teams can evaluate:
- printability;
- dimensional accuracy;
- surface quality;
- production handling;
- thermoforming or burnout behavior where relevant.
Materials used for more clinically sensitive final applications may require a more tightly controlled validation path.
That is not a quality judgment.
It is a workflow and regulatory reality.
Do Not Confuse “Open” With “No Support”
A good open-material ecosystem should still provide support.
The strongest implementation combines material choice with:
- documented profiles;
- technical data;
- validation information;
- supplier support;
- workflow guidance.
Asiga's open architecture is a good example of a mature openness strategy: broad material access is paired with a large validated material library.
Formlabs' OMM approach is another model: the user gains third-party flexibility, but Formlabs also documents specific third-party dental print settings and states warranty conditions associated with OMM use.
The lesson is:
Professional openness should increase choice without hiding responsibility.
Questions Distributors Should Ask a New Resin Supplier
Open-material distributors have an additional responsibility because their reputation sits between the resin manufacturer and the final laboratory.
Before adding a new resin line, ask:
- Who develops and manufactures the resin?
- Is production batch-controlled?
- Which printers have been tested?
- Which profiles are available?
- What dental applications are supported?
- Can we obtain IFU?
- Can we obtain SDS?
- Can we obtain technical/property data?
- What regulatory documents exist?
- What wash/cure process is required?
- Is technical support available for parameter evaluation?
- How are formulation or documentation updates communicated?
- Can the supplier support recurring B2B demand?
A resin portfolio is not just chemistry.
It is also documentation, manufacturing consistency and application support.
Questions Labs Should Ask Before Switching Resin
If you are already running Formlabs, Asiga, HeyGears, SprintRay, SHINING 3D, Ackuretta, PioCreat or another professional system, do not switch material based only on a product listing.
Ask your supplier:
- Is this exact material tested on my exact printer?
- Which software/profile should I use?
- What layer thickness is recommended?
- What dimensional compensation is required?
- What wash protocol is required?
- What curing unit and cycle are required?
- Is the application indicated in my country?
- What should I test before production rollout?
Then run a controlled evaluation.
A Simple Material Evaluation Workflow
Step 1 — Select one application
Do not qualify a new resin across every application simultaneously.
Start with one.
Example:
Ortho Model
Step 2 — Confirm printer and wavelength
Record:
- printer model;
- firmware;
- light wavelength;
- software version.
Step 3 — Obtain documentation
Collect:
- IFU;
- SDS;
- TDS/property chart;
- certifications where applicable;
- print profile.
Step 4 — Print representative parts
Use geometry that reflects real production.
Step 5 — Measure and inspect
Evaluate:
- fit;
- dimensions;
- surface;
- supports;
- failure rate;
- repeatability.
Step 6 — Validate post-processing
Follow the specified wash/cure workflow.
Step 7 — Run a small production batch
A single successful print is not production validation.
Step 8 — Document the approved process
Record settings before broader rollout.
This turns open-material freedom into a controlled production process.
What Open Material Means for Total Ownership
Material freedom can influence long-term ownership in several ways.
It may allow a business to:
- avoid depending on one material source;
- use specialist resins;
- adapt to supply interruptions;
- select materials by application;
- evaluate future formulations.
But openness can also introduce more responsibility for validation.
Therefore the smartest purchasing decision is not necessarily:
Buy the most open printer.
It is:
Buy a printer whose degree of material freedom matches your technical capability and business strategy.
A clinic may prefer a tightly guided ecosystem.
A large laboratory with an experienced materials team may prioritize open parameter access.
Both can be rational choices.
Where PioCreat Fits
PioCreat's strength is the combination of:
professional LCD hardware + application-specific dental resins + post-processing + workflow support
PioNext Mini also supports 385 nm and 405 nm light, which broadens the physical range of materials that may be evaluated.
For users considering third-party materials on any PioCreat system, ADDITORYX recommends confirming:
- exact printer model;
- wavelength;
- application;
- current resin profile;
- IFU;
- wash/cure requirements;
- regional documentation.
We do not treat wavelength matching alone as proof of validated compatibility.
That is the standard we apply when discussing third-party materials with customers.
Explore the PioCreat dental resin portfolio, or contact ADDITORYX with your printer model and application.
Open Material Should Be Part of the Printer Buying Decision
If you are still choosing hardware, material strategy should be evaluated before purchasing.
When comparing printers, ask:
- Does the manufacturer have its own resin R&D?
- Is there a broad native material portfolio?
- Is the printer open to outside materials?
- How are third-party profiles created?
- Who validates the complete workflow?
- Does third-party use affect warranty?
- Is post-processing also supported?
- Can I source the materials in my region?
Our related guide, Best Dental 3D Printers in 2026, evaluates material strategy together with printer performance, maintenance and support.
For a technology-level comparison, also see LCD vs DLP Dental 3D Printing: What Actually Matters for Accuracy and Production?
Final Takeaway
Open-material dental 3D printing is valuable because it gives buyers choice.
But choice without validation is not a professional workflow.
The correct sequence is:
Wavelength → Profile → Application → IFU → Wash → Cure → Performance → Documentation
When every step is understood, third-party resin can expand what an existing printer can do.
When those steps are ignored, “open material” becomes little more than a marketing label.
For clinics, labs and distributors, the objective should therefore be:
More material freedom, with controlled application validation.
That is the balance that makes an open ecosystem useful.
Frequently Asked Questions
What is an open-material dental 3D printer?
It is a printer that allows some level of use of photopolymer materials from multiple manufacturers rather than restricting users entirely to one proprietary resin portfolio. The amount of parameter access and validation support varies by platform.
Does 405 nm resin work on every 405 nm printer?
No. Wavelength matching is only one requirement. Exposure settings, optical behavior, dimensional compensation, application indication, washing and post-curing must also be evaluated.
What is the difference between IFU, SDS and TDS?
IFU explains how the material is intended to be used. SDS covers chemical safety and handling. TDS or a property chart describes technical/material performance data.
Can third-party resin affect printer warranty?
It can, depending on the manufacturer and policy. For example, Formlabs states specific warranty conditions related to Open Material Mode. Always review the printer manufacturer's current warranty terms before using third-party materials.
Are model resins easier to evaluate than clinical resins?
They can have a lower adoption barrier because the validation pathway may be simpler than for final intraoral devices, but they still require dimensional and process validation.
Does PioCreat make its own dental resins?
PioCreat offers a broad portfolio of application-specific dental photopolymer materials alongside its printer and post-processing systems. The current ADDITORYX dental resin page lists materials for model, restorative, orthodontic, casting, guide, gingiva and denture workflows.
