Resin 3D printing does not replace investment casting. It changes how the sacrificial pattern is made.
In a conventional lost-wax workflow, a wax pattern is created and invested in a refractory material before burnout and metal casting. With vat photopolymerization, the jeweler can print a castable resin or wax-filled photopolymer pattern directly from CAD, then use that printed pattern in the investment-casting process.
This distinction is important: the printer produces the pattern, not the final precious-metal jewelry.
For custom jewelry, complex geometries and low-to-medium production volumes, this digital pattern workflow can reduce manual pattern-making work and make design iteration faster. Academic research on rapid investment casting also identifies vat photopolymerization as attractive because of its ability to create complex patterns with good surface quality and dimensional control.
1. Design for casting, not only for printing
A jewelry model can be printable but still be poorly designed for casting.
Before slicing, consider:
- minimum feature thickness;
- stone-setting geometry;
- filigree dimensions;
- sprue attachment points;
- metal flow;
- investment access;
- burnout behavior;
- expected casting shrinkage;
- finishing allowance.
The digital file should therefore be designed for the complete casting process, not merely to survive the printer.
Dimensional compensation should be based on your actual chain: resin, printer, investment, burnout cycle, alloy and finishing process. Avoid copying a universal shrinkage percentage from another foundry without validation.
2. Orientation affects both print quality and final casting workflow
Orientation controls more than support quantity.
It can influence:
- visible support marks;
- layer stair-stepping;
- local dimensional deviation;
- resin drainage;
- peel forces during printing;
- risk of trapped liquid resin;
- ease of support removal.
A 2024 study of SLA patterns made with castable wax resin found that build orientation significantly affected dimensional deviation, with different geometric features responding differently to orientation. That means there is no single “always print at 45°” rule for every jewelry geometry.
For rings and fine jewelry patterns, orient the model so that support contacts are moved away from critical decorative surfaces, prongs, edges and stone seats whenever possible.
3. Print the pattern with a controlled resin environment

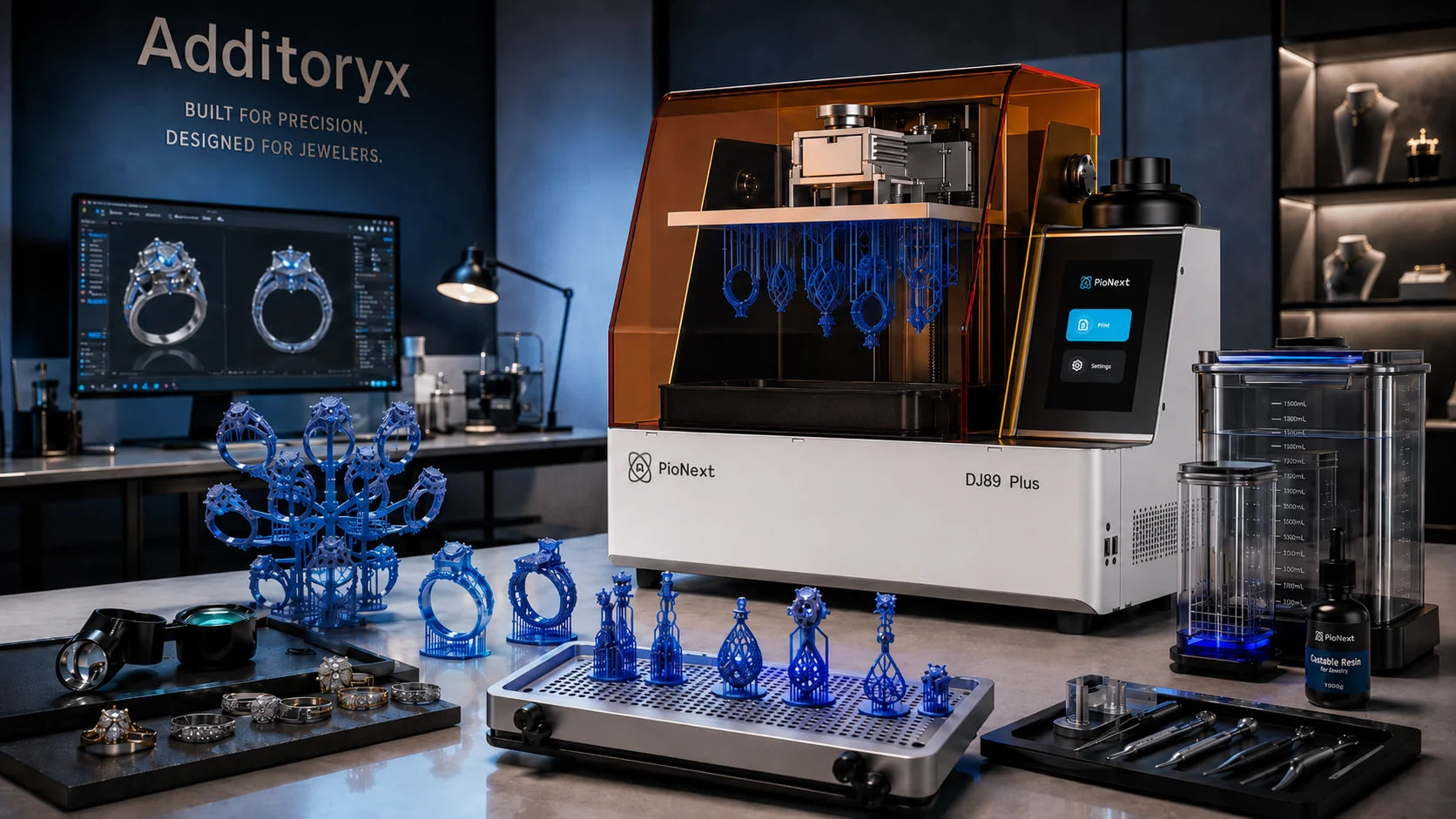

PioCreat’s DJ89 PLUS is designed for both dental and jewelry resin printing.
Current manufacturer specifications include:
- 10.3-inch 8K monochrome LCD;
- 29 μm listed XY specification;
- 228 × 128 × 100 mm printing size;
- 0.01–0.1 mm supported layer range;
- integrated chamber heating from 20–35°C;
- automatic feeding support;
- dual-linear-guide and ball-screw Z-axis.
The heated chamber is useful because resin viscosity is temperature-dependent. However, the correct temperature still depends on the material specification; heating should not be treated as a reason to ignore the resin’s recommended working conditions.
For PioCreat Castable Wax Resin, the manufacturer’s TDS publishes DJ89 PLUS starting parameters at 0.05–0.1 mm layer thickness, with a suggested base-layer exposure of 30–60 seconds, normal-layer exposure of 6.5–7.5 seconds and lift speed of 1–10 mm/s.
These should be treated as starting parameters for that specific material, not universal settings for every jewelry resin.
4. Wash thoroughly, but do not damage the pattern
Residual resin is a casting problem as well as a surface-quality problem.
PioCreat’s current Castable Wax Resin TDS recommends cleaning printed models with absolute ethanol or isopropyl alcohol. It also states that low-frequency ultrasonic cleaning can be used, while high-frequency/high-power ultrasonic cleaning or aggressive brushing may damage fine surface detail.
For intricate jewelry patterns, this warning is important. Thin prongs, lattice structures and filigree can be more vulnerable than large engineering parts.
After washing, remove the cleaning liquid thoroughly and allow the model to dry completely before further processing.
A clean pattern gives the investment process a more predictable surface than a pattern carrying liquid resin residue.
5. Support removal should follow the resin procedure
The PioCreat Castable Wax Resin TDS recommends removing most supports before post-curing because fully cured support contacts can be more difficult to remove cleanly and can damage the contact area.
That does not mean every resin should use the same sequence. Follow the TDS for the material actually being printed.
For jewelry, support strategy should be planned during slicing so that finishing work occurs on non-critical surfaces. A support scar on the underside of a shank is very different from one on a pavé seat or prong tip.
6. Post-cure only as required by the castable resin
More curing is not automatically better for casting patterns.
The purpose of a castable pattern is different from a final engineering resin part. The model needs sufficient handling strength and dimensional stability, but the burnout behavior must also remain compatible with the investment process.
For its Castable Wax Resin, PioCreat notes that a UV cure of about five minutes can be selected in situations where additional toughness is required. The exact post-cure should follow the resin TDS and the validated foundry workflow.
Do not transfer a dental-resin cure profile directly to a castable jewelry resin simply because both materials cure under UV light.
7. Investment and burnout are where castable resin differs from ordinary resin
A standard photopolymer resin is not automatically suitable for investment casting.
Investment-casting patterns should be designed to burn out with sufficiently low residue while minimizing the risk of shell cracking or surface contamination. Academic literature on vat-photopolymerized investment-casting patterns identifies several important pattern requirements:
- low ash or residue after burnout;
- dimensional stability;
- sufficient handling strength;
- good surface quality;
- appropriate thermal behavior during burnout.
This is why a resin labeled for modeling or dental use should not be substituted for a castable formulation without validation.
PioCreat’s Castable Wax Resin TDS describes the material as a low-shrinkage, high-precision, low-ash/ash-free castable resin intended for jewelry casting applications.
8. Burnout must be matched to the resin and investment system
Burnout is not a generic “heat until the resin disappears” step.
For the current PioCreat Castable Wax Resin TDS, the published suggested three-stage temperature schedule is:
- 180°C for 3 hours;
- 350°C for 2.5 hours;
- 650°C for 3 hours.
This is a manufacturer reference for that specific resin. It should not be treated as a universal foundry schedule.
The final burnout cycle may need to account for:
- investment material;
- flask size;
- pattern mass and density;
- furnace characteristics;
- airflow;
- alloy and casting process;
- foundry experience.
Validate the complete cycle before committing valuable metal to production.
9. Why 3D printed patterns are valuable for jewelry production
The strongest business case is not simply “3D printing is newer than wax.”
The value comes from digital control of the pattern-making stage:
- rapid design iteration;
- repeatable reproduction from CAD;
- easy scaling of multiple variants;
- complex geometry without manual carving;
- digital storage of designs;
- batch nesting of many patterns on one build.
Research on rapid investment casting also shows that additive pattern-making can be economically attractive in production scenarios where conventional tooling is slow or expensive, especially for lower volumes and high design variability.
A practical jewelry workflow
A controlled digital casting workflow can be summarized as:
CAD design → casting-aware compensation → slicing and supports → resin printing → washing → drying → support removal → resin-specific post-cure → spruing → investment → controlled burnout → metal casting → divesting → finishing and setting.
Each step affects the next one. The best results come from validating the chain rather than optimizing the printer in isolation.
ADDITORYX supports B2B customers evaluating PioCreat jewelry printing equipment and materials, including DJ89 PLUS and compatible castable resins, as part of the wider investment-casting workflow.
Jewelry 3D Printing → DJ89 PLUS → Jewelry Resins → Get a Quote →
Key takeaway
Castable resin 3D printing is a digital pattern-making technology for investment casting. The printed resin pattern must be designed, cleaned, cured and burned out according to a validated material-specific process. Fine printer resolution helps, but successful jewelry casting ultimately depends on the interaction between CAD, printing, resin chemistry, investment and furnace cycle.
Technical references
- PioCreat official DJ89 PLUS product page.
- PioCreat Castable Wax Resin Technical Data Sheet (current public TDS): includes DJ89 PLUS print-parameter suggestions, ethanol/IPA cleaning guidance, support-removal guidance and suggested 180°C / 350°C / 650°C burnout stages.
- Application of Stereolithography Based 3D Printing Technology in Investment Casting. Micromachines, 2020, 11(10), 946.
- Kalilayeva A. et al. Investigation of Stereolithography Additively Manufactured Components for Deviations in Dimensional and Geometrical Features. Polymers, 2024, 16(23), 3311.
- Large Scale Vat-Photopolymerization of Investment Casting Master Patterns: The Total Solution. Polymers, 2022, 14(21), 4593.
- Rapid investment casting: a techno-economic analysis for evaluating VAT photopolymerisation processes. International Journal of Advanced Manufacturing Technology, 2024.
